  • Floor Mounted Rails
On this page
  • General information
  • Technical details
  • Expert contact
KS-650/900/63/100
Rope

KS-650/900/63/100

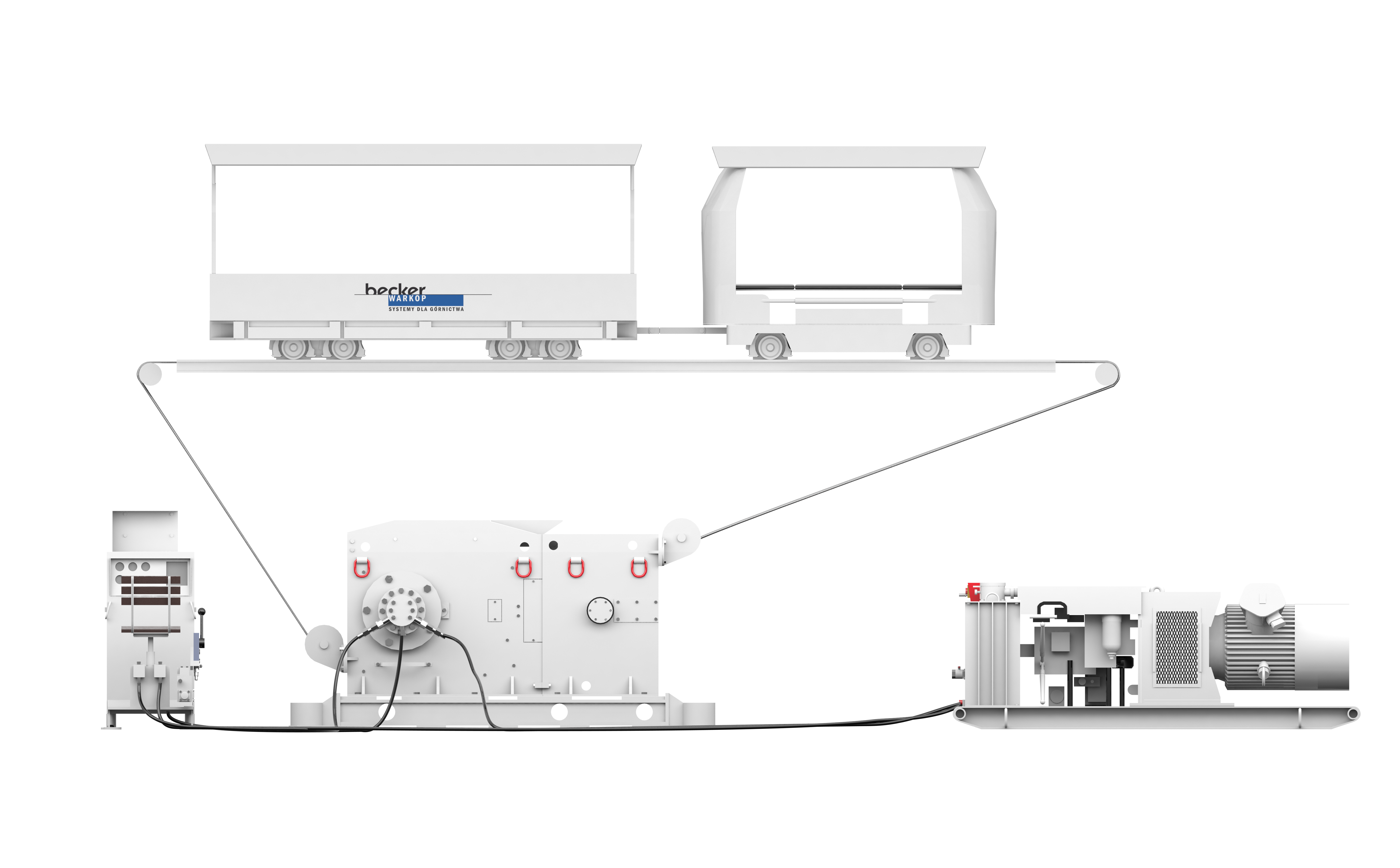

Floor mounted rope driven railway type KS-650/900/ 63/100 with track width 650 or 900 mm, and rope pulling force 63 or 100 kN is applied among the other things for the following transports in underground mine headings:
• materials transportation directly on platforms or in containers (eg. loose materials) long elements (eg. pipes) and loads with big outline dimensions, like machinery parts
• of powered roof support sections etc. in horizontal headings and headings with inclination up to ±30º
• transport of people in personnel cabins or in cabins mounted on carrying or pulling-carrying platforms and braking trolley in horizontal headings and headings with inclination up to ±25º
• simultaneous transport of personnel and materials in horizontal headings, and headings with inclination up to ±25º Track of a floor mounted railway can be laid in mine headings on all kinds of floors, including sandy floors.
Floor mounted rope driven railway type KS-650/900/ 63/100 is intended for transporting personnel, mate- rials or simultaneous transporting of personnel and materials.

  • High speed
  • Drive station on surface
  • Lack of exhaust gas emission
  • Lack of heat emission
  • Reliable and tested design

KS-650/900/63/100: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

Rope

Rope pulling force

63/100 kN

Pulling-Carrying platform load

100/150/220/320/350 kN

Track Gauge

650 or 900 mm

Max. longitudinal inclination of track

±30°

KS-650/900/63/100: Full technical information

Type of drives Rope
Rope pulling force 63/100 kN
Pulling-Carrying platform load 100/150/220/320/350 kN
Track Gauge 650 or 900 mm
Max. longitudinal inclination of track ±30°
Max. transverse track inclination ±15°
Driving speed up to 2 m/s
Min. Horizontal Curve Radius 4 m
Min. Vertical Curve Radius 22 m
Technical details may vary between different product versions.
