USIX100AUI UHF IS Splice with DC
smartcom 450IS

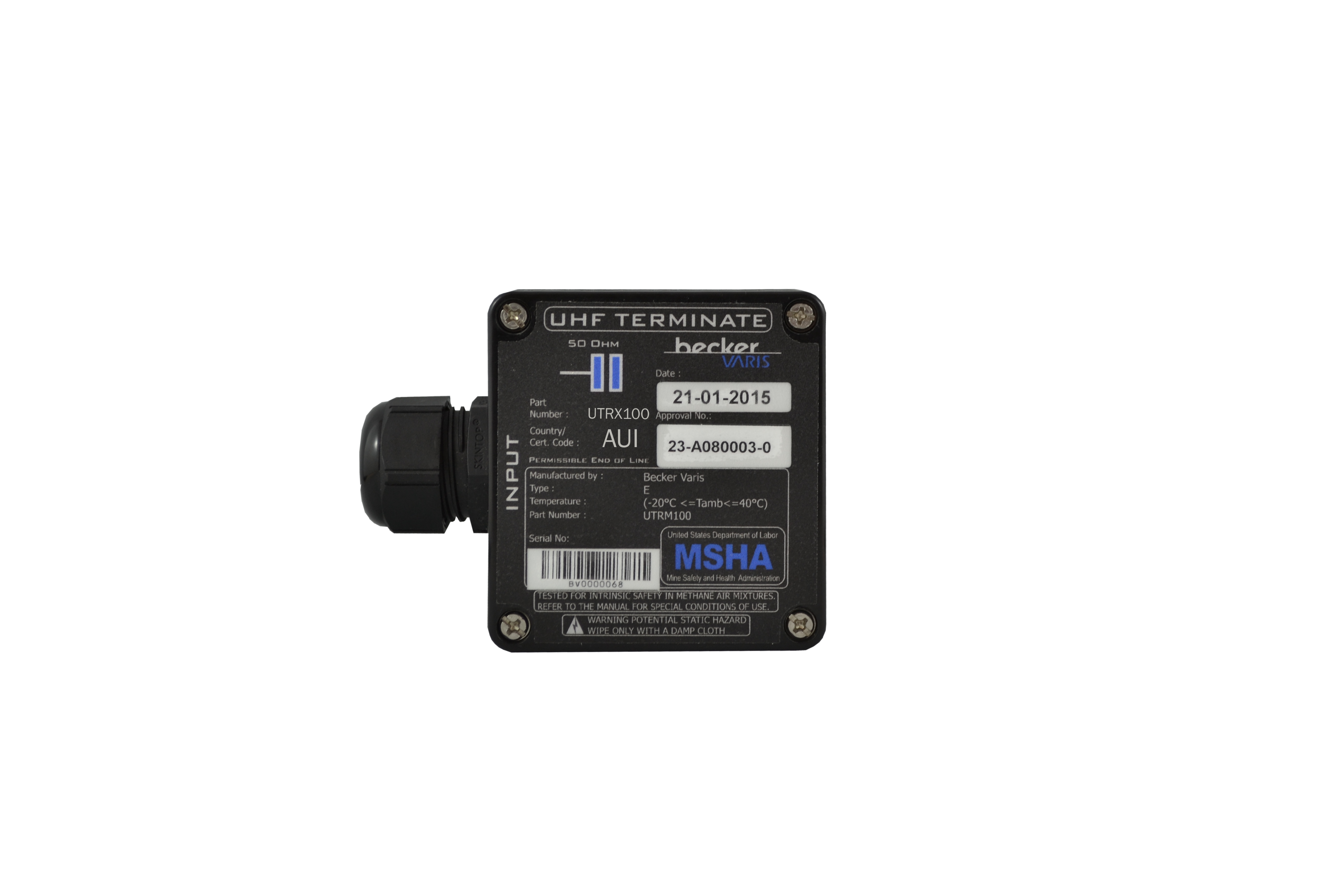

UTRX100AUI UHF IS End of Line Termination

Becker Mining Systems smartcom® radiating “leaky” cable systems, in which radio signals are transmitted from a cable rather than from an aerial, can provide two-way radio services in situations where conventional VHF and UHF communications from central areas are not practical. The radiating cable Splice Box is typically used in Mining, Shipping, Tunneling, Motorway and In-Building radiating cable systems. This unit is used to connect two sections of cable during installation, extensions or repairs to Leaky Feeder systems. The unit couples both the RF and DC signals seamlessly between the two joined sections.

  • Minimum RF loss through the splice point
  • DC current up to 3A is transferred through the unit
  • Brass block custom connection system specifically for radiating cable system

UTRX100AUI UHF IS End of Line Termination: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

UTRX100AUI Datasheet

Download Size: 907.89 KB File Format: PDF

Technical information

Frequency Band

100 MHz to 500 MHz

Impedance

50 Ω

Connectors

1 Brass Block connector

Operating Temperature

-20°C to +40°C

Operating Humidity

10% to 85% (Non Condensing)

UTRX100AUI UHF IS End of Line Termination: Full technical information

Frequency Band 100 MHz to 500 MHz
Impedance 50 Ω
Connectors 1 Brass Block connector
Operating Temperature -20°C to +40°C
Operating Humidity 10% to 85% (Non Condensing)
Protection Class IP66 according to EN60529
Impact Resistance 7Nm – Body Only – Not indicator lights
Flammability UL94 V-O
Enclosure Kestrel ‘KE’ & ‘POK’ glass reinforced polyester type
Dimensions 61 x 75 x 80 mm
Weight 0.46 kg
Mounting Options 4 Holes M6 directly
Technical details may vary between different product versions.
