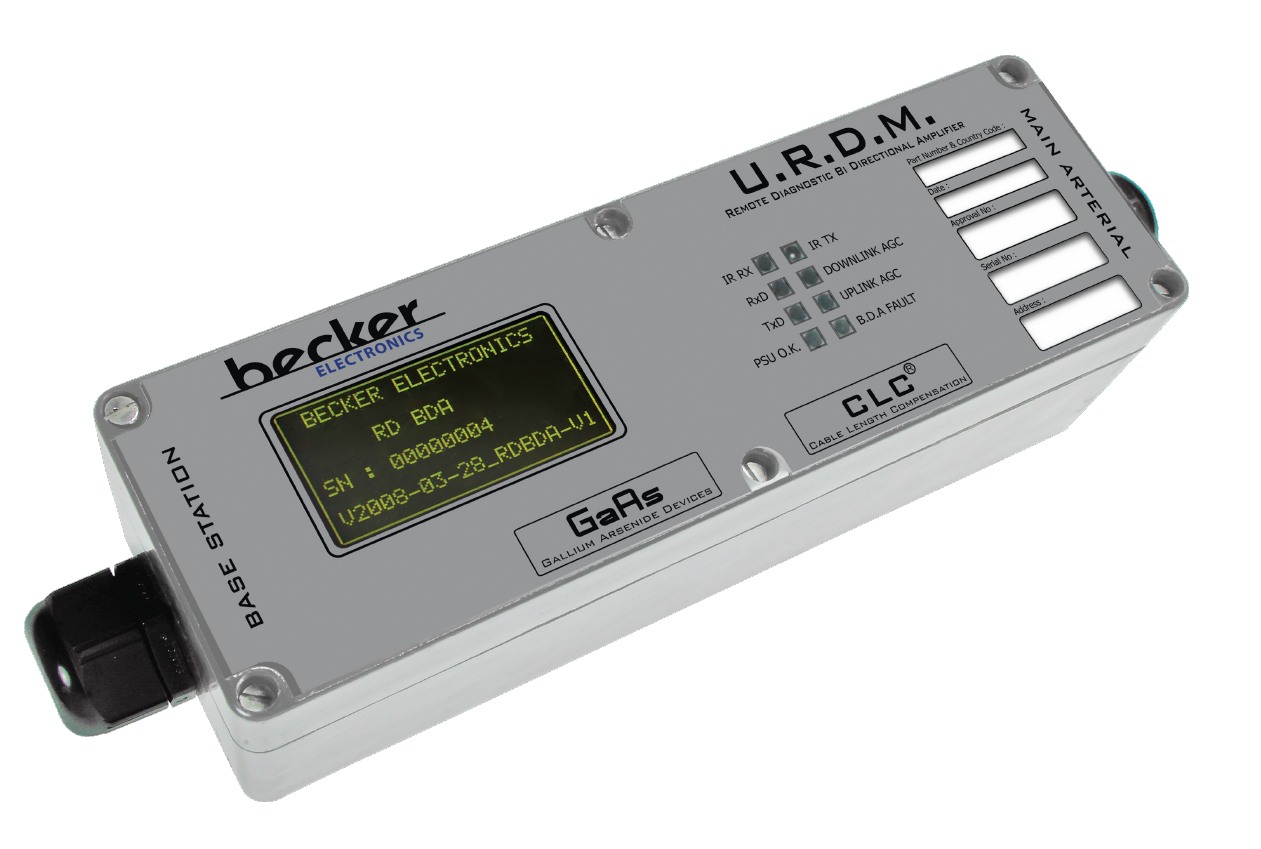

URDM210US# UHF Diagnostic Amplifier
smartcom 450

URDM210US# UHF Diagnostic Amplifier

The smartcom® UHF Bi-Directional Amplifier from Becker Mining Systems is typically used in Mining, Shipping, Tunnelling, Motorway and In-Building radiating cable systems to compensate for Leaky Feeder Cable longitudinal losses in both directions simultaneously.
Becker Mining Systems BDA specifications are optimally suited to maximize these performance criteria. The BDA serves to maintain the strength of RF signal levels along the Leaky Feeder coaxial cable. The amplifier is unique in that it offers the lowest possible noise contribution to an already weak RF carrier when operating in collocation with a strong carrier.
The connectors of the inline amplifiers have been designed for ease of connection making installation and repair as convenient as possible. The Power Source required from the Leaky Feeder cable is 8V to 17Vdc.

  • Large channel capacity with simultaneous voice and data transfers
  • Freedom from Inter-modulation distortion
  • Reliable and ‘mean-time-between-failure’ channels

URDM210US UHF Diagnostic Amplifier: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

URDM210US# Datasheet

Download Size: 790.24 KB File Format: PDF

Technical information

Frequency Range

Base to Handheld 475 MHz –480 MHz (Down-link) Handheld to Base 450 MHz – 455 MHz (Up-link)

Channel Capacity

80 Channels (Up and Down)

Gain Response Ripple

1.6 dB (max)

Operating Voltage

8 Vdc to 17 Vdc

Through Current Capacity

3.0 A (max)

URDM210US UHF Diagnostic Amplifier: Full technical information

Frequency Range Base to Handheld 475 MHz –480 MHz (Down-link) Handheld to Base 450 MHz – 455 MHz (Up-link)
Channel Capacity 80 Channels (Up and Down)
Gain Response Ripple 1.6 dB (max)
Operating Voltage 8 Vdc to 17 Vdc
Through Current Capacity 3.0 A (max)
Operating Temperature -20 to +40° C
Operating Humidity 10% to 85% (Non Condensing)
Protection Class IP66 according to EN60529 Impact
Flammability UL94 V-O
Enclosure Kestrel ‘KE’ glass reinforced polyester type
Dimensions 230 x 75 x 61 mm
Weight 1.24 kg
Mounting Options 4 holes M6 directly
Technical details may vary between different product versions.
