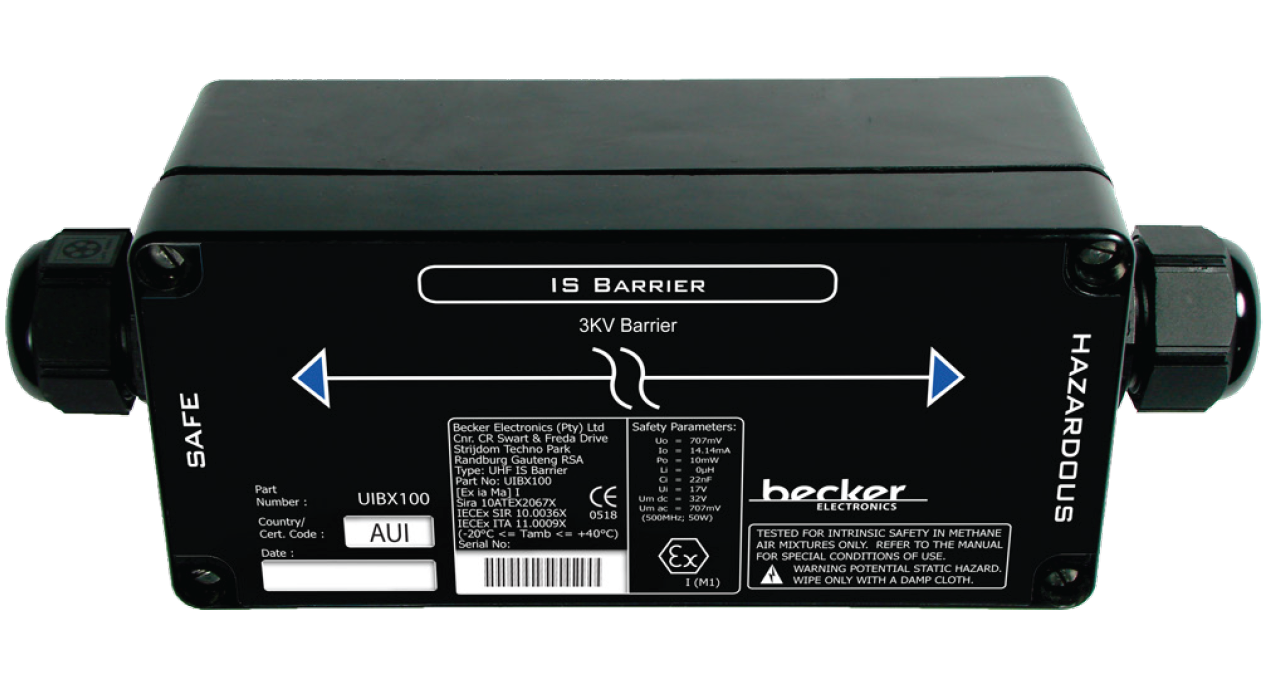

UIBX100AUI UHF IS Barrier No DC
smartcom 450IS

UIBX100AUI UHF IS Barrier No DC

Becker Mining Systems smartcom® Intrinsically Safe Isolation Barrier is used to provide an isolated interface between the base station and a “Radiating Leaky Cable System”. The IS Barrier is located in a non-hazardous area and provides no dc power connectivity however it connects to equipment which is in the hazardous area, and which is also covered by the same certificate.
The equipment is comprised of a single PCB which is encapsulated inside a certified glass fibre reinforced polyester enclosure. The IS Barrier has two RF connections for simple installation of coaxial radiating cables.
The primary purpose of the IS Isolation Barrier is to isolate the hazardous-area equipment from the safe area equipment. The safe area terminals are for connection to non-intrinsically safe Leaky Feeder equipment and the hazardous area terminals are for connection to intrinsically safe Leaky Feeder equipment. This leaky feeder unit is NOT to be used in hazardous areas for example to replace a Cell Coupler.

  • Provides 6KV for isolation between the base station port and the main arterial port
  • 90V Triggered lighting surge arresters at ports
  • Transparent VHF and UHF RF Throughput
  • Mechanically sound brass block connectors
IECEx

Product certificates

This product is certified for:
IECEx
Some text.
@todo Different products ---

UIBX100AUI UHF IS Barrier No DC: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

UIBX100AUI Datasheet

Download Size: 574.99 KB File Format: PDF

Technical information

Frequency Band

200 MHz to 500 MHz

Impedance

50 Ω

Connectors

50 Ω Brass Blocks

Insertion Loss

<5 dB

Operating Temperature

-20°C to +40°C. Derate 0.5°C per 500m ASL

UIBX100AUI UHF IS Barrier No DC: Full technical information

Frequency Band 200 MHz to 500 MHz
Impedance 50 Ω
Connectors 50 Ω Brass Blocks
Insertion Loss <5 dB
Operating Temperature -20°C to +40°C. Derate 0.5°C per 500m ASL
Operating Humidity 10% to 85% (Non Condensing)
Protection Class IP68 according to EN60529
Impact Resistance 7Nm – Body Only – Not indicator lights
Flammability UL94 V-O
Enclosure Kestrel ‘KE’ & ‘POK’ glass reinforced polyester type
Dimensions 160 x 75 x 61 mm
Weight 0.776 kg
Technical details may vary between different product versions.
