UHF Head End
smartcom 450

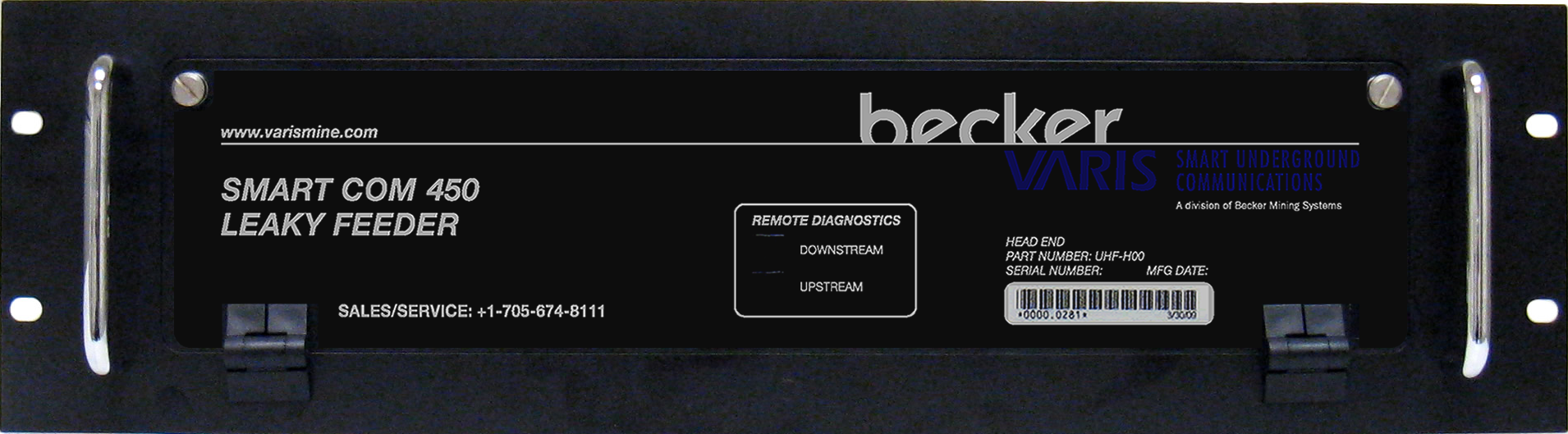

UHF-H05-XX UHF Head End

Becker Mining Systems’ smartcom® UHF-H05-XX Head End is the interface between Base Station equipment (repeaters, head end server) and the Becker smartcom® 450 Leaky Feeder network. The head end provides a downstream pilot and bi-directional
remote diagnostics which are compatible with legacy systems also compatible with HERM head ends.

The UHF-H05 head end is available with 12VDC (standard), 24VDC or 36VDC output to the LF network for systems using European or North American frequency bands.

  • Bi-Directional Remote Diagnostics
  • N-Type Leaky Feeder Connections
  • 12VDC (standard), 24VDC and 36VDC output models available
  • Compatible with international channel plans (EU/NA)

UHF-H05-XX UHF Head End: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Impedance

BR1 - BR4: 50 Ω; CH1 - CH16: 50 Ω; CMTS: 75 Ω

Input Voltage Range

12 - 14 Vdc

Current Consumption

740 mA (nominal)

Current Limiting

~2A

Enclosure

19” 3U, Steel

UHF-H05-XX UHF Head End: Full technical information

Impedance BR1 - BR4: 50 Ω; CH1 - CH16: 50 Ω; CMTS: 75 Ω
Input Voltage Range 12 - 14 Vdc
Current Consumption 740 mA (nominal)
Current Limiting ~2A
Enclosure 19” 3U, Steel
Dimensions 483 x 132 x 356 mm
Weight 6.5 kg
Temperature Range -20 to +60° C
Technical details may vary between different product versions.
