Terminal Display with Sensor
Gas Monitoring

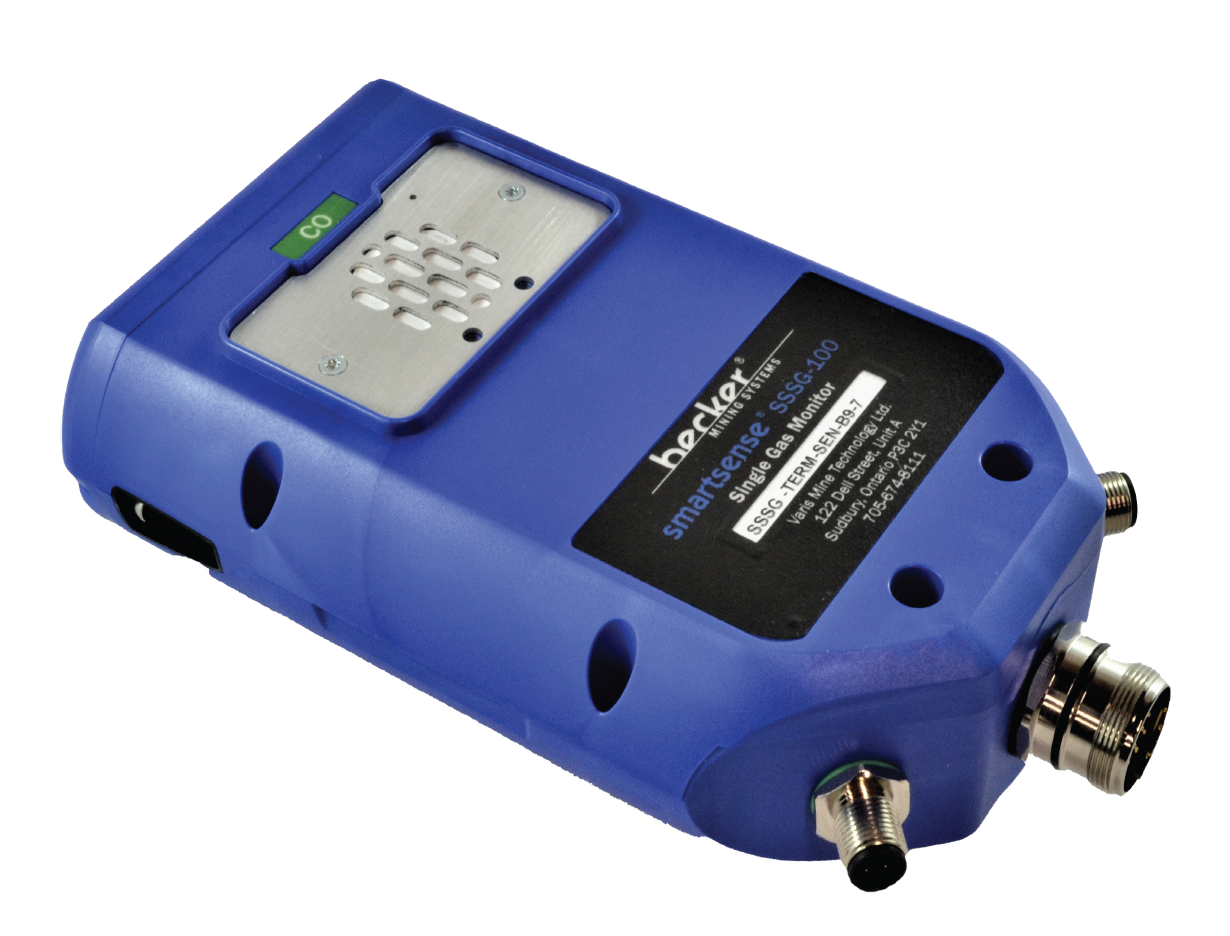

SSSG-100 smartsense® Single Gas Monitor with Sensor

The smartsense® Single Gas Monitor SSSG-100 is an all-in-one, customizable gas monitoring unit, reliable in all mining workplace
environments.

The IS-designed smartsense® Single Gas Monitor Terminal Module with On-board Sensor can be used as a standalone environmental
monitoring solution. A robust, multi-gas monitoring system can be built by adding up to six hot-swappable SSSG-100 Sensor Modules to the Terminal Module. Mine safety can be further increased with the addition of a SSSG-100 Alarm Module.

The smartsense® Single Gas Monitor SSSG-100 Terminal Module with Sensor functions as a black box, storing critical information such as Calibration Record, Alarm History, and data logging for post-accident investigation.

Fully programmable set points for Alarm and Output controls along with Short Term Exposure Limit (STEL) and Time Weighted Average (TWA) limits for sensor modules can be configured and viewed over RS485 Modbus.

  • Single/dual gas detection per module
  • Modular architecture allows for monitoring expansion
  • Optional Digital/Analog inputs and outputs
  • Programmable alarm set points
  • smartCal compatible
  • Calibration record, alarm history

SSSG-100 smartsense® Single Gas Monitor with Sensor: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

SSSG-TERM-SEN Datasheet

Download Size: 1.38 MB File Format: PDF

Technical information

Power Supply Voltage

10 to 24 Vdc

Current Consumption

<9.0 mA @ 24 Vdc, <9.5 mA @ 15 Vdc, <10.5 mA @ 12 Vdc, <11.0 mA @ 10 Vdc

Temperature Range

-20 °C to +40 °C

Humidity

90 % Non-condensing

IP Rating

IP66/67

SSSG-100 smartsense® Single Gas Monitor with Sensor: Full technical information

Power Supply Voltage 10 to 24 Vdc
Current Consumption <9.0 mA @ 24 Vdc, <9.5 mA @ 15 Vdc, <10.5 mA @ 12 Vdc, <11.0 mA @ 10 Vdc
Temperature Range -20 °C to +40 °C
Humidity 90 % Non-condensing
IP Rating IP66/67
Connectivity RS485 Modbus
Technical details may vary between different product versions.
