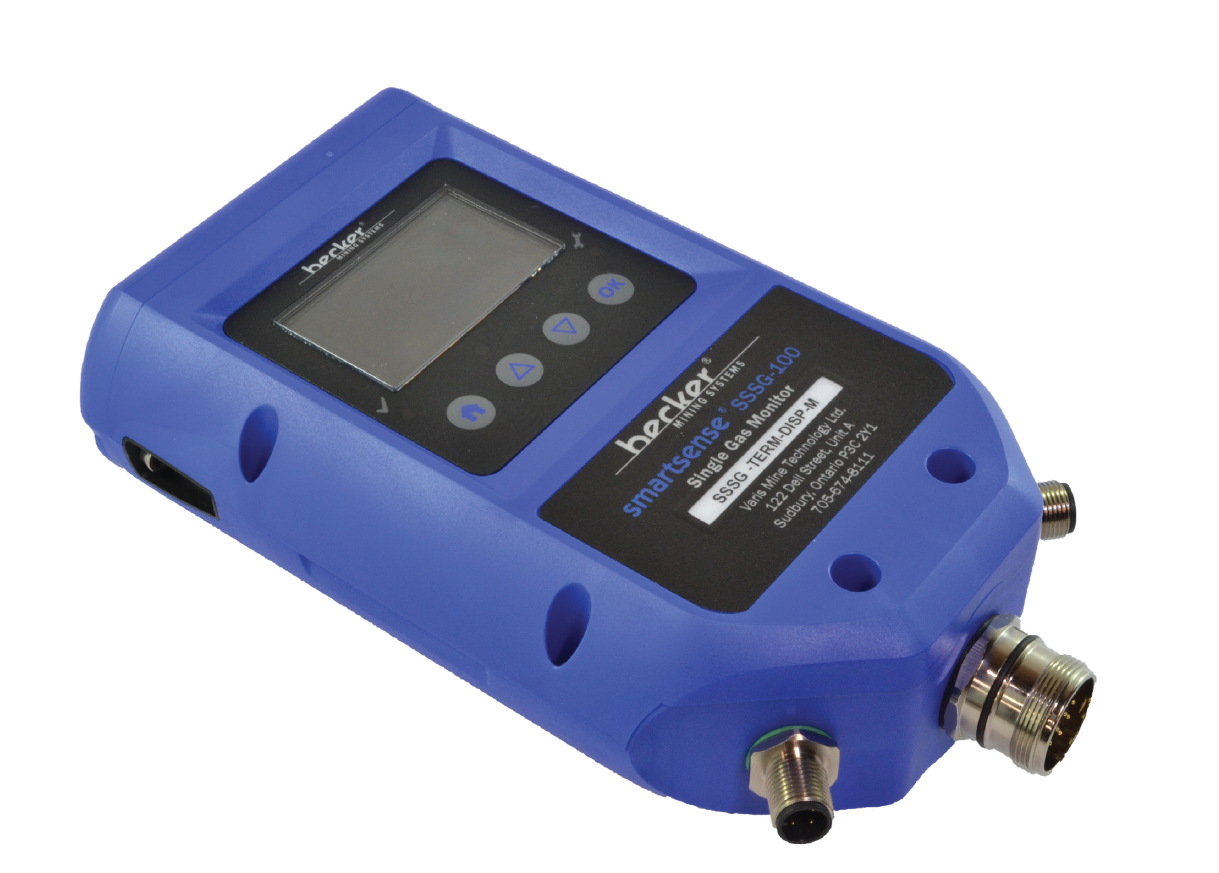

SSSG-100 smartsense® Single Gas Monitor Terminal Module with Display
Gas Monitoring

SSSG-100 smartsense® Single Gas Monitor Terminal Module with Display

The smartsense® Single Gas Monitor SSSG-100 is an all-in-one, customisable gas monitoring unit, reliable in all mining workplace environments.
The IS-designed smartsense® Single Gas Monitor Terminal Module with Display is easily, and quickly, connected to a Sensor Module to provide an environmental monitoring solution with an on-location user interface. Functionality can be further extended by adding up to a total of six hot-swappable Sensor Modules to provide a robust, multi-gas monitoring system.
The sensing capability of the Terminal Module with Display is provided with the addition of Sensor Modules, or a remote sensor. Mine safety can be further increased with the addition of a SSSG-100 Alarm Module.
The smartsense® Single Gas Monitor SSSG-100 Terminal Module with Display functions as a black box storing critical information such as Calibration Record, Alarm History and Data logging for post-accident investigation. This data may be accessed through RS485 Modbus. Alternately, a quick summary of real-time information, and selected configuration options, are available through the on-board display and user interface.

  • Low power colour display
  • Modular architecture allows for monitoring expansion
  • Optional digital/analog inputs and outputs
  • Programmable alarm set points
  • smarCal compatible
  • Calibration and alarm history

SSSG-100 smartsense Single Gas Monitor Terminal Module with Display: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

SSSG-TERM-DISP Datasheet

Download Size: 876.7 KB File Format: PDF

Technical information

Current Consumption

<15.0 mA @ 24 Vdc, <19.0 mA @ 15 Vdc, <21.0 mA @ 12 Vdc, <24.0 mA @ 10 Vdc

Temperature Range

-20 °C to +40 °C

Humidity

90 % Non-condensing

IP Rating

IP66/67

Connectivity

RS485 Modbus

SSSG-100 smartsense Single Gas Monitor Terminal Module with Display: Full technical information

Current Consumption <15.0 mA @ 24 Vdc, <19.0 mA @ 15 Vdc, <21.0 mA @ 12 Vdc, <24.0 mA @ 10 Vdc
Temperature Range -20 °C to +40 °C
Humidity 90 % Non-condensing
IP Rating IP66/67
Connectivity RS485 Modbus
Technical details may vary between different product versions.
