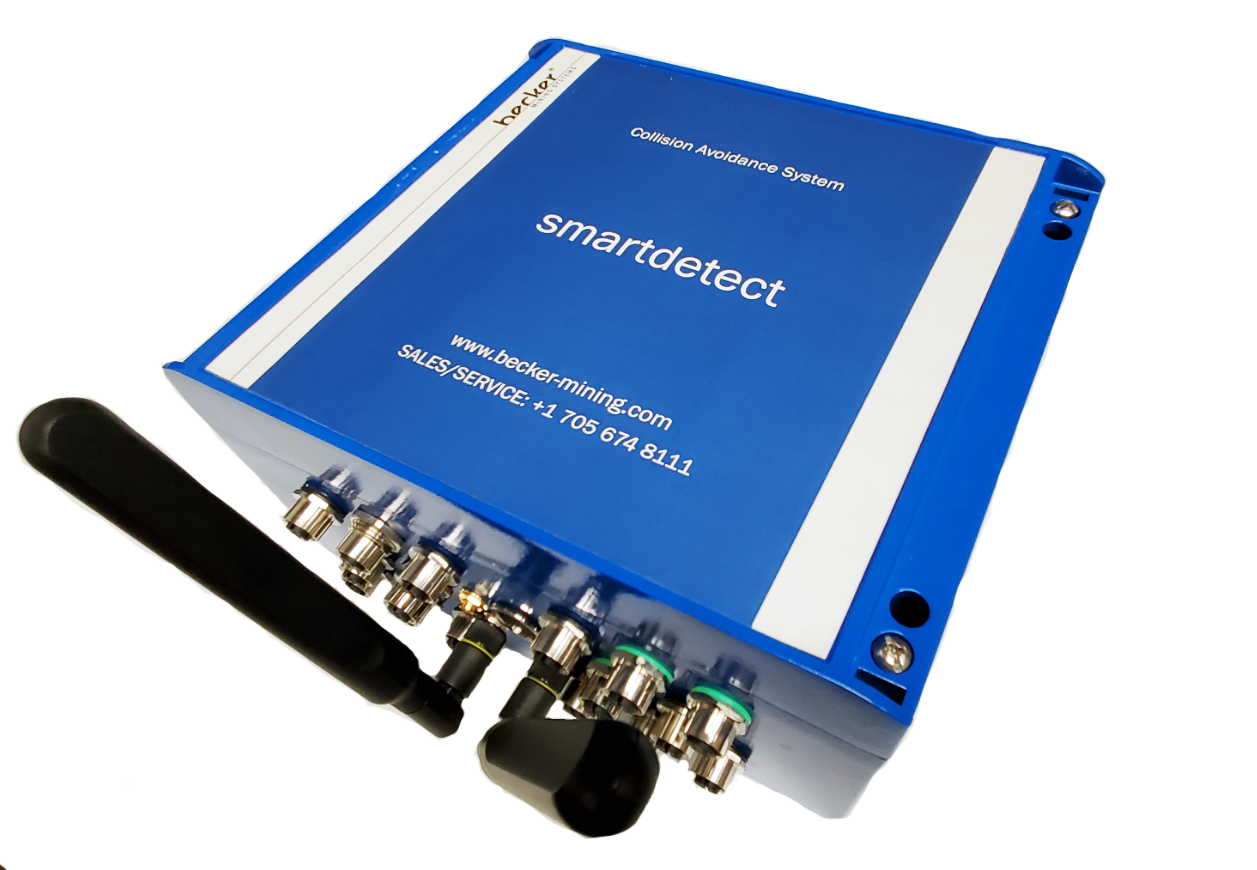

smartdetect Controller
smartdetect

smartdetect Controller

All mines recognize the need for a reliable, robust and low maintenance Collision Avoidance System to enhance safety and production. The Becker Mining Systems smartdetect system is designed to prevent injury and damage during the operation of mining vehicles in close proximity to other equipment.
This system provides an early warning indication that alerts the operator to the presence and number of smartdetect-enabled vehicles and transponders in the vicinity.
The controller gathers data and other information from the various onboard sensors to create a real-time map of the vehicle and other smartdetect-enabled vehicles. The controller can determine the projected course of other vehicles and provide awareness via the visual and audible cues if there is a risk of collision.
Equipped with various components, the controller serves as the brains of the operation. It centralizes the data from all peripheral devices with its embedded I/O interfaces, processes it and projects it onto a user-friendly graphical interface.

  • V2X support
  • Rugged aluminium casing (IP65)
  • Operator-friendly interface
  • 12 – 24 V Voltage

smartdetect Controller: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

Controller Datasheet

Download Size: 726.45 KB File Format: PDF

Technical information

Input Voltage Range

12 - 24V

Absolute Max Current

5A Controller, 10A POE, 1.5A LCD

Radio

Freq: 5.85 - 5.925 GHz Transmit Power: 20 dBm max

Integrated POE Switch

IEEE 802.3 af/802.3 at, 60 watts total power, 4-port unmanaged 10/100 switch

Enclosure

Aluminum

smartdetect Controller: Full technical information

Input Voltage Range 12 - 24V
Absolute Max Current 5A Controller, 10A POE, 1.5A LCD
Radio Freq: 5.85 - 5.925 GHz Transmit Power: 20 dBm max
Integrated POE Switch IEEE 802.3 af/802.3 at, 60 watts total power, 4-port unmanaged 10/100 switch
Enclosure Aluminum
Dimensions 230 x 120 x 200 mm
Weight 4 kg
Connectors HDMI, Ethernet (POE), USB RS-232/422/485, CAN
Temperature Range -20 to +60° C
Protection Class IP65
Technical details may vary between different product versions.
