VHF Two Way Splitte
smartcom 150

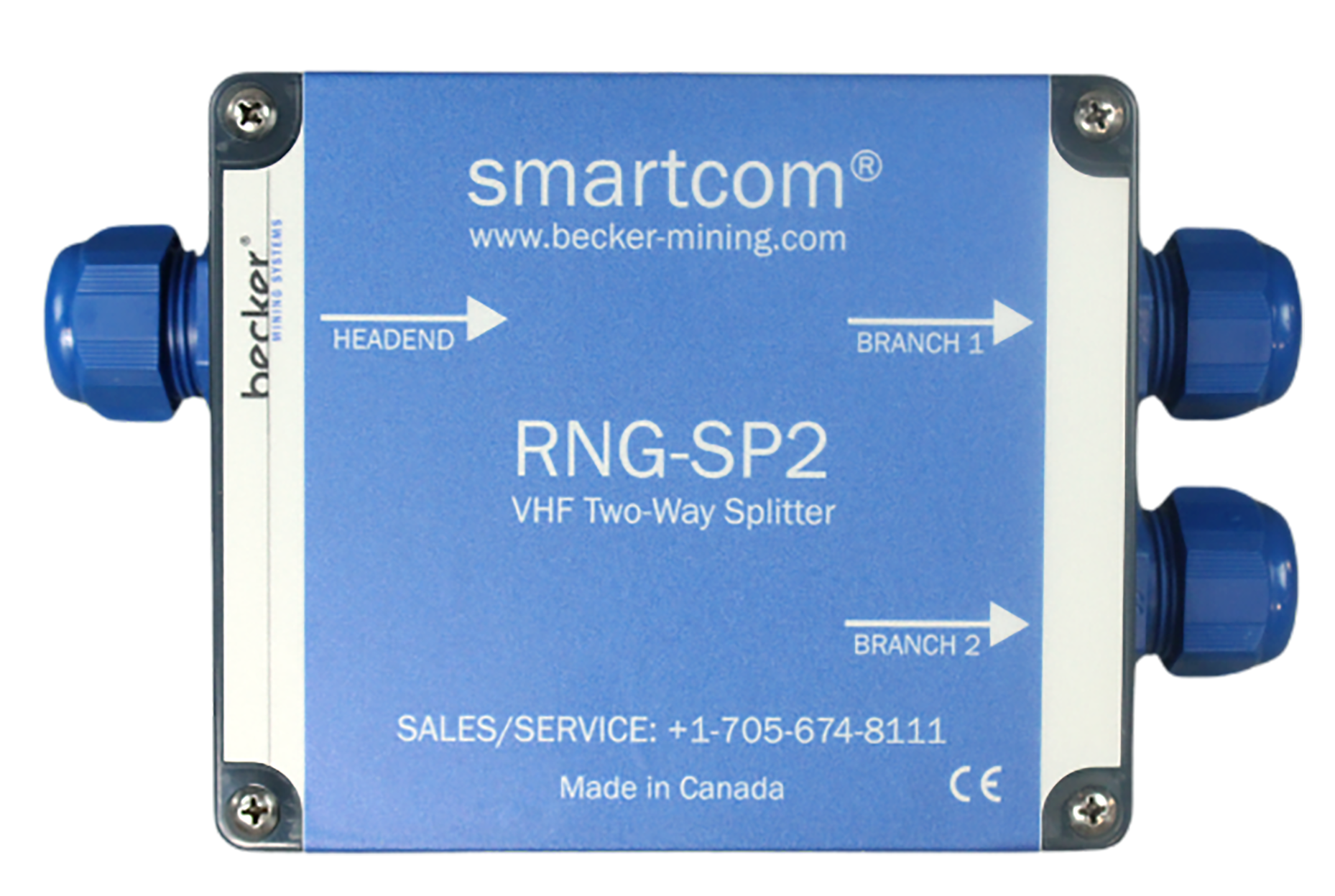

RNG-SP2 VHF Two-Way Splitter

Becker Mining Systems two-way splitters enable branching of Leaky Feeder cable in a smartcom® 150 system. The RNG-SP2 is a fully functional VHF splitter for the frequencies 10-200 MHz.
Each branch has jumpers to select its mode of operation:
Terminate: 75 Ω Termination.
No DC: Blocks DC voltage to/from branch.
Normal: Passes RF and DC.

  • RF Branching off Leaky Feeder Cable
  • DC Blocking and Termination Selection on each Branch via Jumper
  • 75 Ohm Impedance
CE Certification

Product certificates

This product is certified for:
CE Certification
Some text.
@todo Different products ---

RNG-SP2 VHF Two-Way Splitter: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

RNG-SP2 Datasheet

Download Size: 850.41 KB File Format: PDF

Technical information

Input/Output Impedance

75 Ω

Frequency Range

10-200 MHz

Input Voltage Range

0-40 Vdc

Current Consumption

0 mA

Dimensions

200 x 75 x 130 mm

RNG-SP2 VHF Two-Way Splitter: Full technical information

Input/Output Impedance 75 Ω
Frequency Range 10-200 MHz
Input Voltage Range 0-40 Vdc
Current Consumption 0 mA
Dimensions 200 x 75 x 130 mm
Weight 0.4 kgs
Enclosure Polystyrene
Temperature Range -20 to +60° C
Technical details may vary between different product versions.
