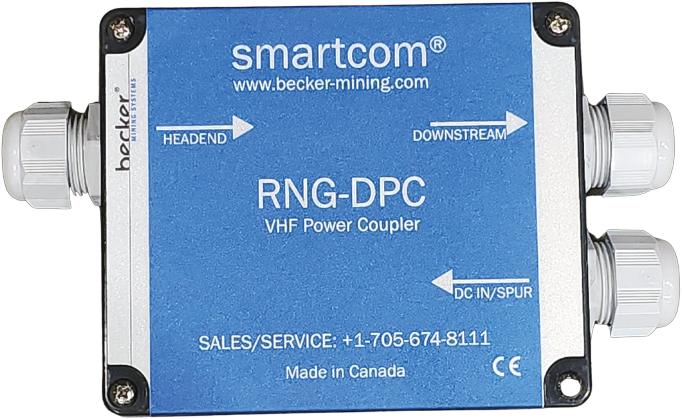

RNG-DPC VHF Power Coupler
smartcom 150

RNG-DPC VHF Power Coupler

The Becker Mining Systems smartcom® 150 Power Couplers provide an interface between the Leaky Feeder network and system Power Supplies. These devices introduce negligible loss to the Leaky Feeder network and therefore do not affect amplifier spacing.
The Main Line and DC In/Spur branches have jumpers to select:
Terminate: 75 Ω Termination
No DC: Blocks DC to/from branch
Normal: Passes RF and DC. Used to Inject DC Voltage onto the Leaky Feeder Systems

  • Low Main Line Loss
  • Does not Affect Amplifier Spacing
  • 0-40 Vdc Input Range
  • DC Blocking and Termination via Jumper
CE Certification
MSHA Certificate

Product certificates

This product is certified for:
CE Certification
Some text.
MSHA Certificate
Some text.
@todo Different products ---

RNG-DPC VHF Power Coupler: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

RNG-DPC Datasheet

Download Size: 644.31 KB File Format: PDF

Technical information

Input/Output Impedance

75 Ω

Frequency Range

10-200 MHz

Input Voltage Range

0-40 Vdc

Current Consumption

0 mA

Enclosure

Polystyrene

RNG-DPC VHF Power Coupler: Full technical information

Input/Output Impedance 75 Ω
Frequency Range 10-200 MHz
Input Voltage Range 0-40 Vdc
Current Consumption 0 mA
Enclosure Polystyrene
Dimensions 200 x 75 x 130 mm
Weight 0.4 kg
Temperature Range -20 to +60° C
Protection Class NEMA 4x (IP66)
Technical details may vary between different product versions.
