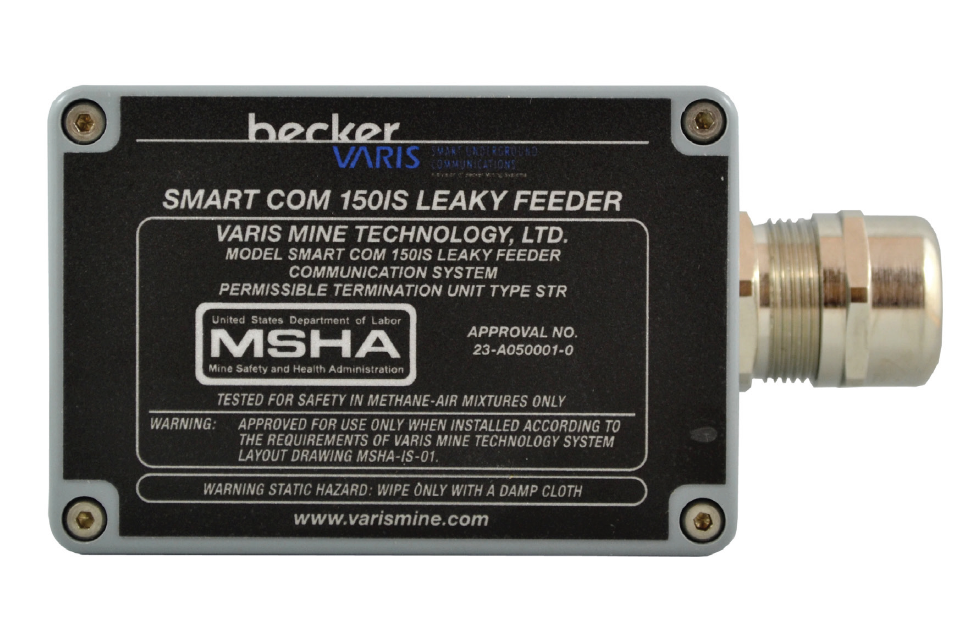

RIS-TER VHF IS Termination Unit
smartcom 150IS

RIS-TER VHF IS Termination Unit

Becker Mining Systems’ smartcom® 150IS Termination units are required at the end of each Leaky Feeder cable branch to absorb RF signals, preventing reflections and distortion.
Alternately, Stope antennas (RIS-AN1) can be installed at the end of Leaky Feeder branches to extend coverage into stopes or areas.

  • Intrinsically safe MSHA-certified
  • End of line unit
  • Absorbs RF signals
  • Prevents reflections and distortions
  • Passive device
MSHA Certificate

Product certificates

This product is certified for:
MSHA Certificate
Some text.
@todo Different products ---

RIS-TER VHF IS Termination Unit: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

RIS-TER Datasheet

Download Size: 870.49 KB File Format: PDF

Technical information

Impedance

75 Ω termination

Frequency Range

10-200 MHz

Input Voltage Range

335 mA @ 12 V

Current Consumption

0 mA

Enclosure

Fiberglass reinforced polyester plastic

RIS-TER VHF IS Termination Unit: Full technical information

Impedance 75 Ω termination
Frequency Range 10-200 MHz
Input Voltage Range 335 mA @ 12 V
Current Consumption 0 mA
Enclosure Fiberglass reinforced polyester plastic
Dimensions 145 x 75 x 75 mm
Weight 0.5 kg
Temperature Range -20 to +60° C
Protection Class NEMA 3x (IP54)
Technical details may vary between different product versions.
