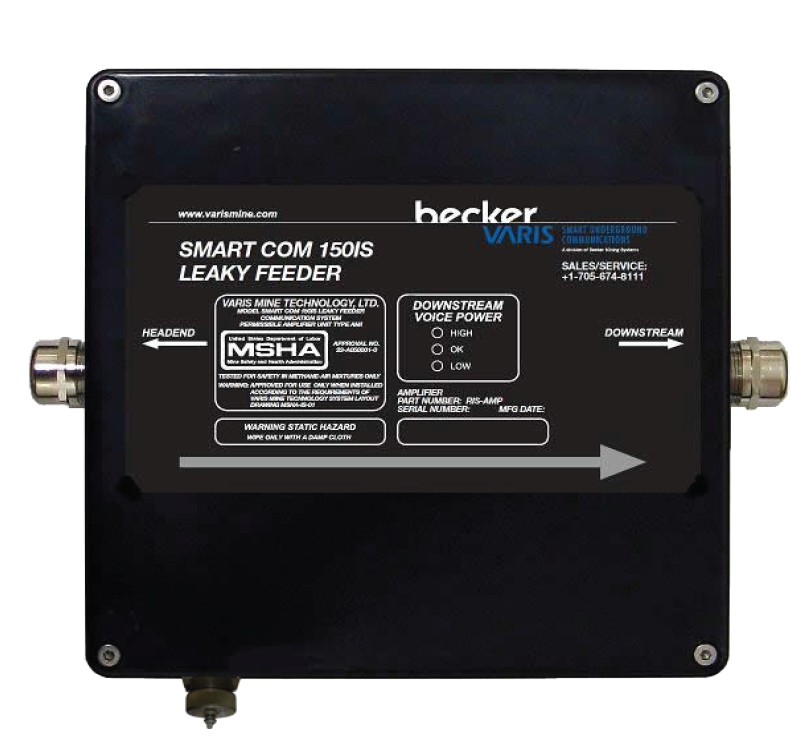

RIS-AMD Power Supply Diagnostic Line Amplifier
smartcom 150IS

RIS-AMD Power Supply Diagnostic Line Amplifier

Becker Mining Systems’ smartcom® 150IS Power Supply Diagnostic Line Amplifiers compensate for Leaky Feeder cable and splitting losses while providing 16 simultaneous noise-free voice radio channels (no third order intermodulation products), IS Power Supply Diagnostics and Ethernet connectivity using standard cable modems. All smartcom® 150IS line amplifiers provide up to 500 m spacing.
Local/Remote RF Diagnostics, Power Supply Diagnostics, Ethernet, video and accurate Automatic Gain Control (AGC) without Return Pilot noise buildup are built-in to every amplifier.
Power Supply Diagnostic line amplifiers connect to ComTrol PS- 1571M and PS-1572M power supplies to periodically test and report battery capacity.
The layout rules for smartcom® 150IS systems can be found in the latest version of drawing MSHA-IS-01.
2 Year component & workmanship warranty.

  • IS Power supply remote diagnostics/testing
  • Intrinsically safe MSHA Certified
  • Widest bandwidth amplifier available
  • Local and remote RF diagnostics
  • Supply voltage range, 5.5-12.5 Vdc
  • Facilitates ethernet connectivity
MSHA Certificate

Product certificates

This product is certified for:
MSHA Certificate
Some text.
@todo Different products ---

RIS-AMD Power Supply Diagnostic Line Amplifier: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

RIS-AMD Datasheet

Download Size: 729.31 KB File Format: PDF

Technical information

Impedance

75 Ω

Input Voltage Range

5.5-12.5 Vdc

Current Consumption

128 mA @ 12 Vdc

Dimensions

323 x 121 x 270 mm

Weight

3.20 kg

RIS-AMD Power Supply Diagnostic Line Amplifier: Full technical information

Impedance 75 Ω
Input Voltage Range 5.5-12.5 Vdc
Current Consumption 128 mA @ 12 Vdc
Dimensions 323 x 121 x 270 mm
Weight 3.20 kg
Temperature Range -20 to +60° C
Protection Class NEMA 4x (IP66)
Technical details may vary between different product versions.
