MEGALIFT
Other Train Components

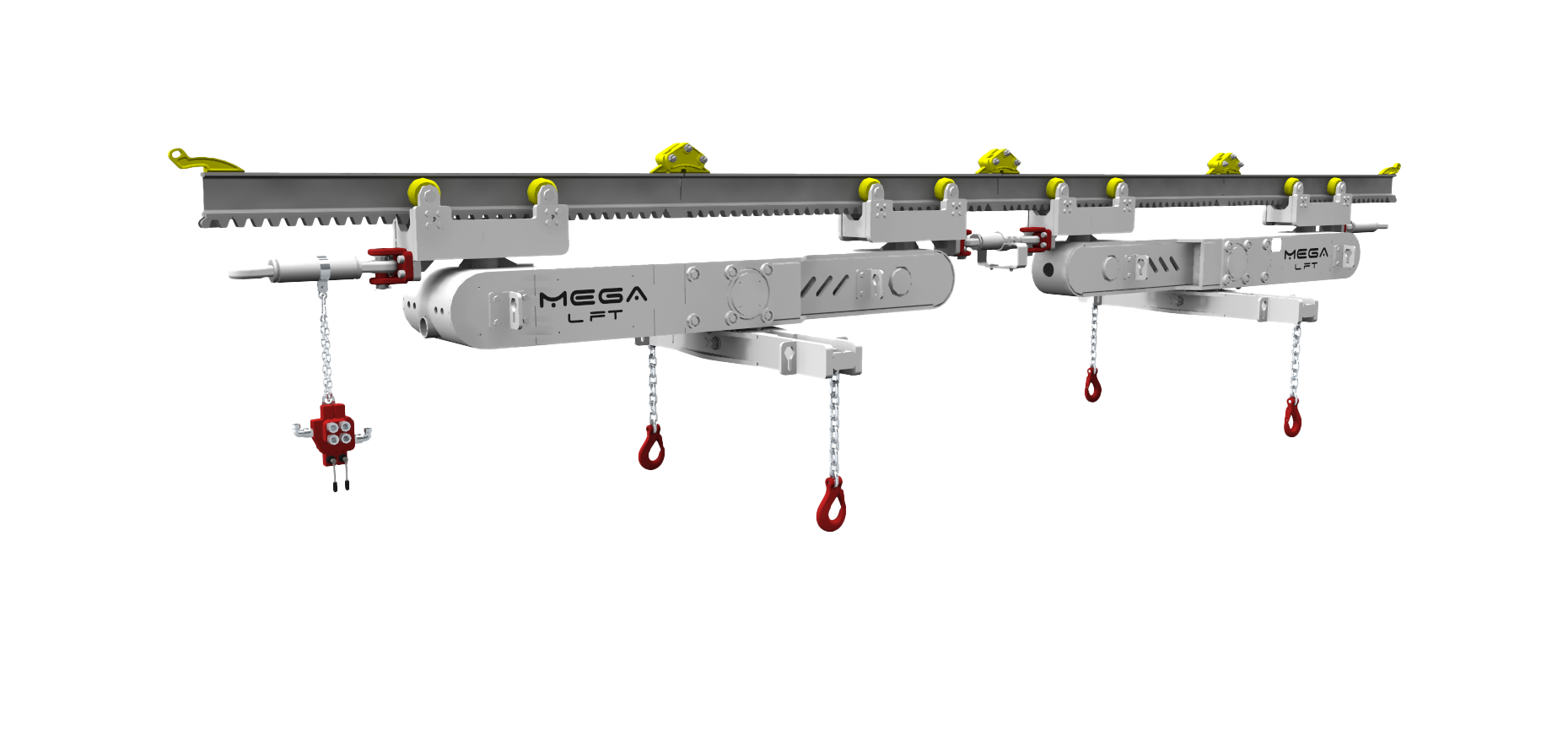

MEGALIFT 32/34 T

MEGALIFT lifting beam is designed for lifting, lowering and transporting loads of weight up to 340 [kN]. This lifting beam set is designed to transport loads up to 34 tons in galleries of inclination up to 30°. Hydraulic lifting beam MEGALIFT consists of two transporting units connected with a connecting rod. Its construction consists of a frame (body) that is equipped with hydraulic actuator. Hydraulic lifting beam MEGALIFT consists of two transporting units connected with a connecting rod. Its construction consists of a frame (body) that is equipped with hydraulic actuator.

  • High capacity
  • Simple construction
  • Lifting performed by pistons
  • Heavy conditions resistance
ATEX
ISO

Product certificates

This product is certified for:
ATEX
Some text.
ISO
Some text.
@todo Different products ---

MEGALIFT 32/34 T: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

hydrostatic

Chain Drive Type

hydraulic actuator

Max. Lifting Capacity

320 kN or 340 kN

Construction width

800/1,100/1,600 mm

Length

Lifting capacity 320 and 340 kN: 7,900/10,600 mm/Lifting capacity 200 and 160 kN: 6,600/9,300 mm

MEGALIFT 32/34 T: Full technical information

Type of drives hydrostatic
Chain Drive Type hydraulic actuator
Max. Lifting Capacity 320 kN or 340 kN
Construction width 800/1,100/1,600 mm
Length Lifting capacity 320 and 340 kN: 7,900/10,600 mm/Lifting capacity 200 and 160 kN: 6,600/9,300 mm
Minimum Construction Height 1,000 mm
Lifting Height 1,650 mm
Max. track inclination ±30°
Permissible Track's Rail Profile 1155 (I140E), I14OV, BWTU or other compatible
Technical details may vary between different product versions.
