KP-95
Diesel

KP-95

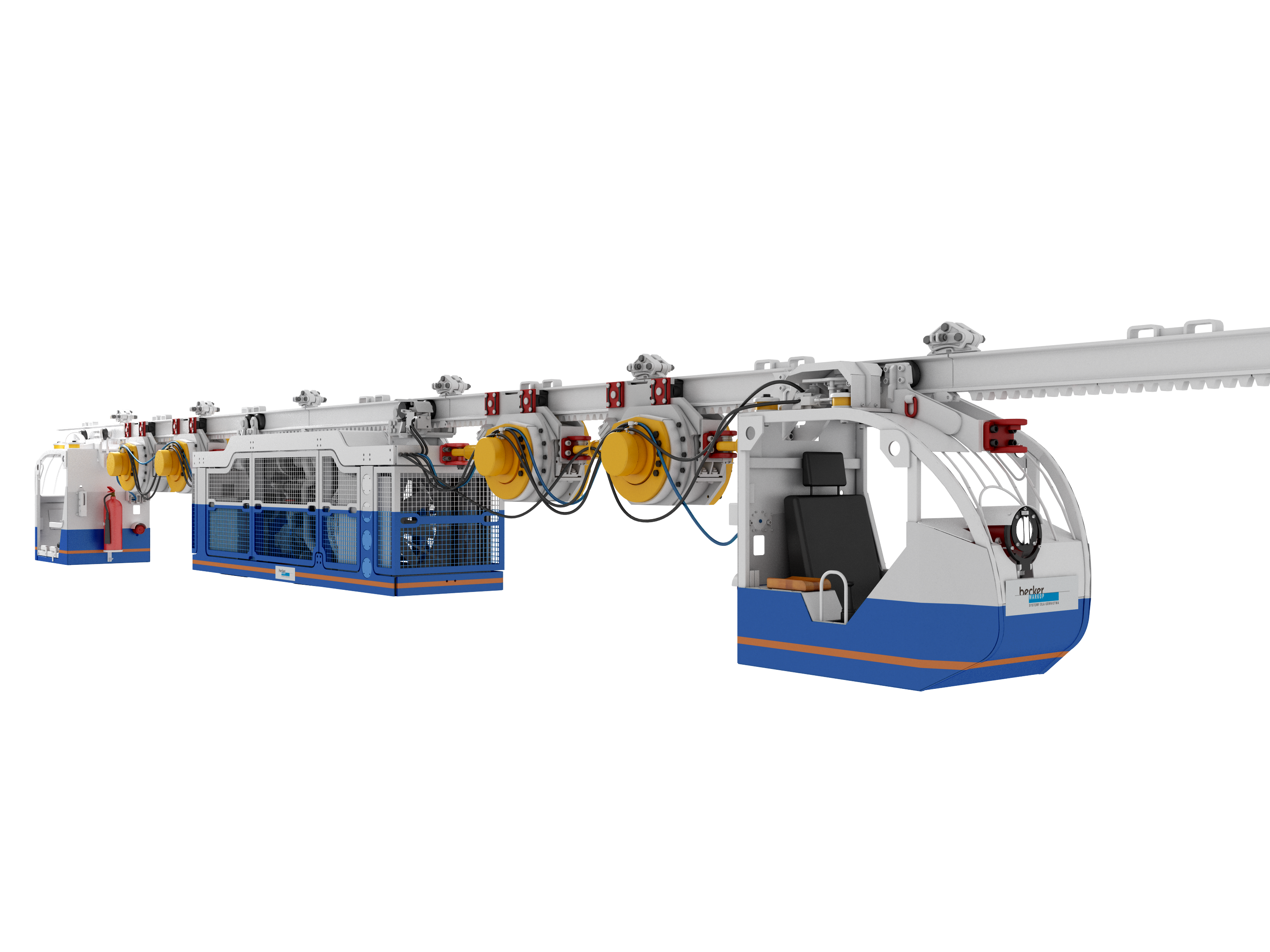

Diesel monorail type KP-95 is designed for transport of personnel, materials and devices such as hydraulic roof supports or heavy components of shearers and conveyors during installation and decommissioning of the longwall or other transport-related works.

  • Relatively high power in small size
  • Low fuel consumption
  • Modular design
  • Various auxiliary equipment configuration (cameras, methane sensors, dispatchable drives, etc.)
  • Very easy and save to use
ATEX
ISO

Product certificates

This product is certified for:
ATEX
Some text.
ISO
Some text.
@todo Different products ---

KP-95: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

Friction drive/Gear drive/Friction drive + Gear drive

Nominal pulling force

20 kN for one friction drive/30 kN for one gear drive/240 kN for ten friction drives

Dimensions

1250 x 800 mm

Max. track inclination

±30°

Driving speed

up to 2.5 m/s

KP-95: Full technical information

Type of drives Friction drive/Gear drive/Friction drive + Gear drive
Nominal pulling force 20 kN for one friction drive/30 kN for one gear drive/240 kN for ten friction drives
Dimensions 1250 x 800 mm
Max. track inclination ±30°
Driving speed up to 2.5 m/s
Min. Horizontal Curve Radius 4 m
Min. Vertical Curve Radius 8 m
Permissible Track's Rail Profile 1155 (I140E), I14OV, I250
Protection Class -10°C - +40°C
Humidity Max. 95%
Technical details may vary between different product versions.
