KD BW 800-1200
Breakers & Crushers

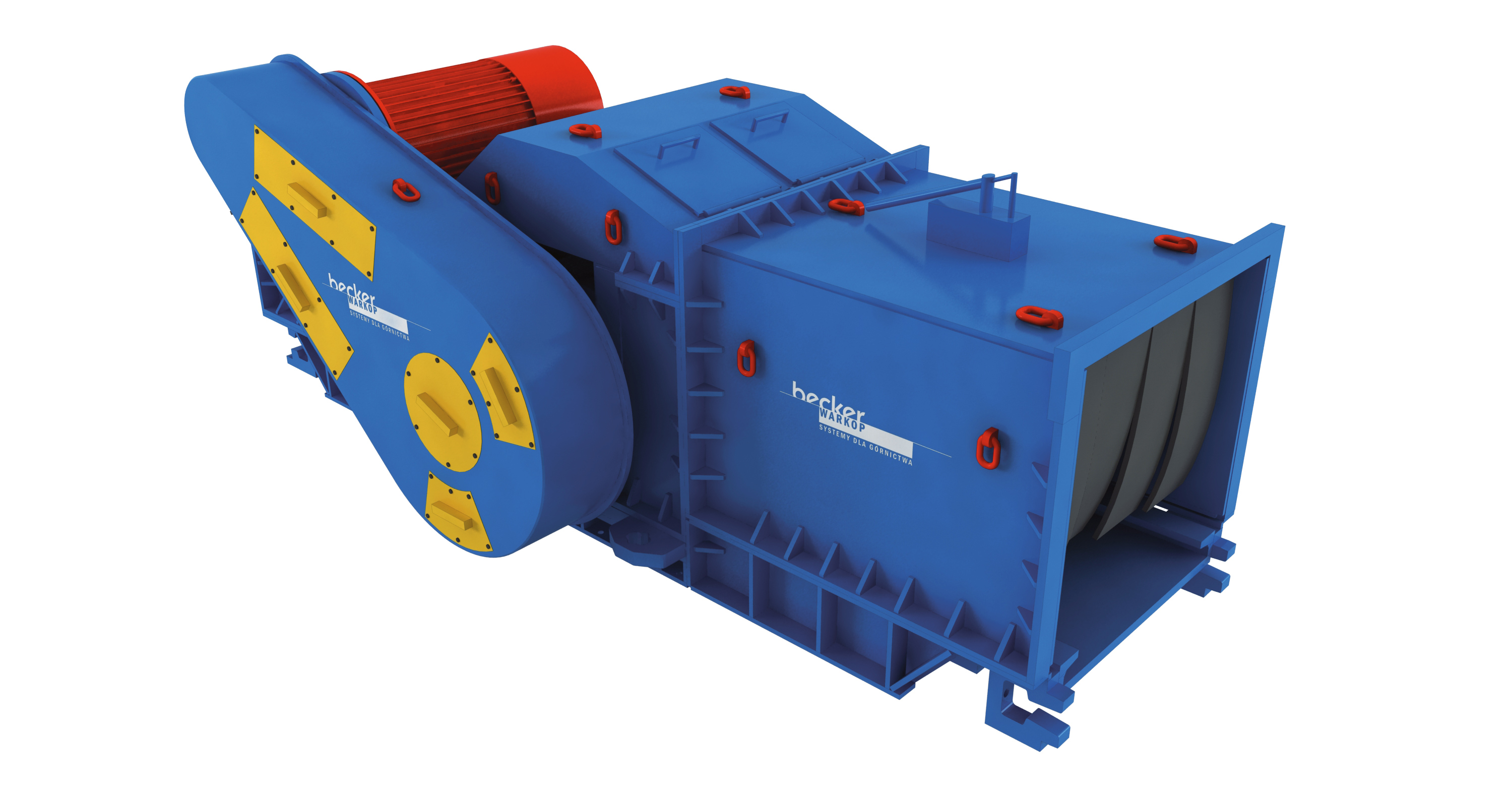

KD BW 800-1200

Dynamic crusher KD BW 800-1200 is intended to crush minerals and stone to facilitate further transport. The crusher is installed in main gate on the route of Beam Stage Loader with size of pans from 750 to 1104mm.

  • High power
  • Extreme conditions durability
  • Produced in different variants
  • Reliable design

KD BW 800-1200: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Capacity

dependent on conveyor capacity

Explosion proof design

Yes

Dimensions

1,850 x 4,500 x 1,970 mm

Weight

12,000 kg

Engine power

90-200 kW

KD BW 800-1200: Full technical information

Capacity dependent on conveyor capacity
Explosion proof design Yes
Dimensions 1,850 x 4,500 x 1,970 mm
Weight 12,000 kg
Engine power 90-200 kW
Shaft RPM 475 [min-1]
Power Supply Voltage 500, 1,000, 1,140, or 3,300 V
Swing Moment GD² 11,400 Nm2
Max. comprehensive strength of crushing material 130 MPa
Technical details may vary between different product versions.
