JUMBOLIFT 33T
Other Train Components

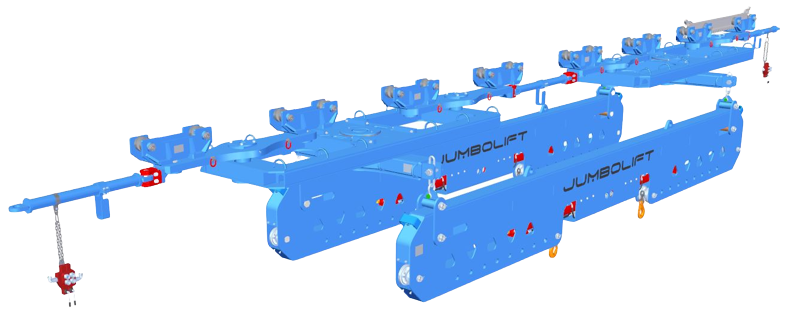

JUMBOLIFT 33T

JUMBOLIFT lifting beam is designed for lifting, lowering and transporting loads of up to 330 [kN]. This lifting beam set is designed to transport heavy loads up to 33 tons in galleries with the inclination up to 30°. This type of beam is mostly used for powered roof supports transport. The JUMBOLIFT transport set is able to transport the complete powered roof supports without necessity of disassembling it. The width between the beams can be adjusted according to the user's recommendations.

  • Extremally high load capacity
  • Good weight-capacity ratio
  • Simple design
  • Remote control possibility
ATEX
ISO

Product certificates

This product is certified for:
ATEX
Some text.
ISO
Some text.
@todo Different products ---

JUMBOLIFT 33T: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

hydrostatic

Chain Drive Type

hydraulic actuator

Max. Lifting Capacity

330 kN

Construction width

1,580 mm (on order)

Length

11,250 mm

JUMBOLIFT 33T: Full technical information

Type of drives hydrostatic
Chain Drive Type hydraulic actuator
Max. Lifting Capacity 330 kN
Construction width 1,580 mm (on order)
Length 11,250 mm
Minimum Construction Height 1,700 mm
Lifting Height 1,400 mm
Max. track inclination ±30°
Permissible Track's Rail Profile 1155 (I140E), I14OV, BWTU or other compatible
Technical details may vary between different product versions.
