CMEH
Battery/Electric

CMEH

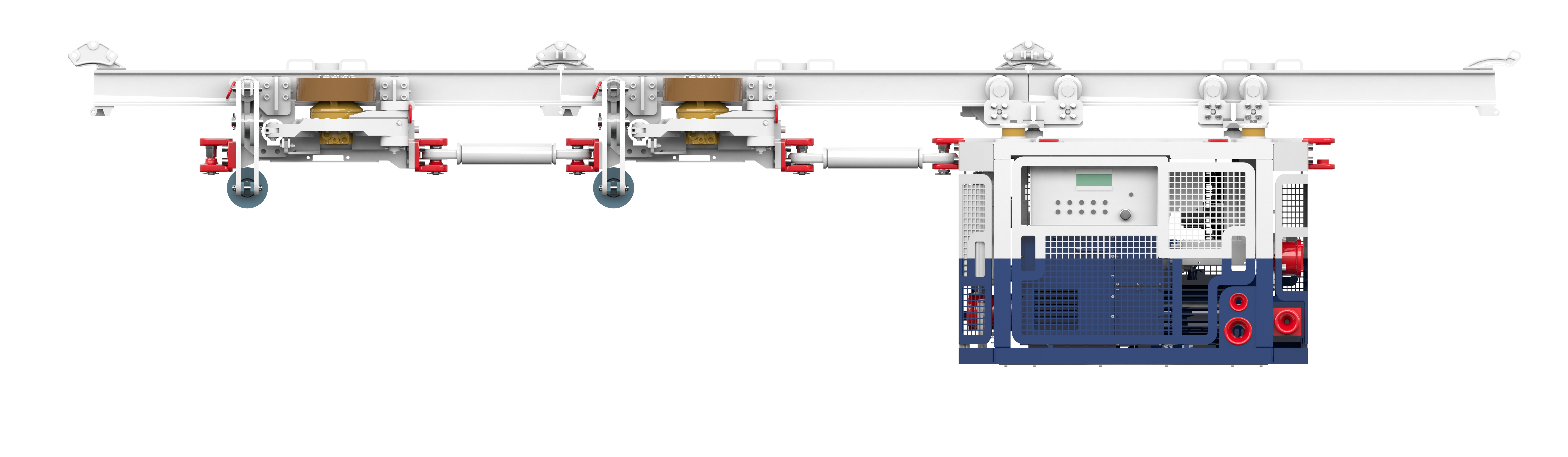

Explosion-proof electric shunting trolley type CMEH is designed to transport machine components, devices and materials such as powered roof supports, shearer components and other elements of mining equipment during installation and relocation of the longwall and other works related to transport. It can be also used as hydraulic power-pack to supply different kinds of hydraulically powered equipment.
Together with appropriate transport sets it is suitable for transport and construction works in mining plants assuring efficient and quiet work.

  • Compact size
  • Eco friendly electric drive
  • Cable and wireless remote control
  • External hydraulic power line
  • Simple relocation
ATEX
ISO

Product certificates

This product is certified for:
ATEX
Some text.
ISO
Some text.
@todo Different products ---

CMEH: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

Friction drive/Gear drive

Nominal pulling force

20 kN for one friction drive/30 kN for one gear drive or multiple depending on number of drives installed

Dimensions

1100 x 800 x 3160 mm

Max. track inclination

±30°

Driving speed

up to 0.9 m/s (for one drive)

CMEH: Full technical information

Type of drives Friction drive/Gear drive
Nominal pulling force 20 kN for one friction drive/30 kN for one gear drive or multiple depending on number of drives installed
Dimensions 1100 x 800 x 3160 mm
Max. track inclination ±30°
Driving speed up to 0.9 m/s (for one drive)
Min. Horizontal Curve Radius 4 m
Min. Vertical Curve Radius 8 m
Permissible Track's Rail Profile I155 (I140E), I14OV, BWTU
Protection Class -10°C - +40°C
Humidity Max. 95%
Methane Concentration According to the rules (two adjustable thresholds)
Technical details may vary between different product versions.
