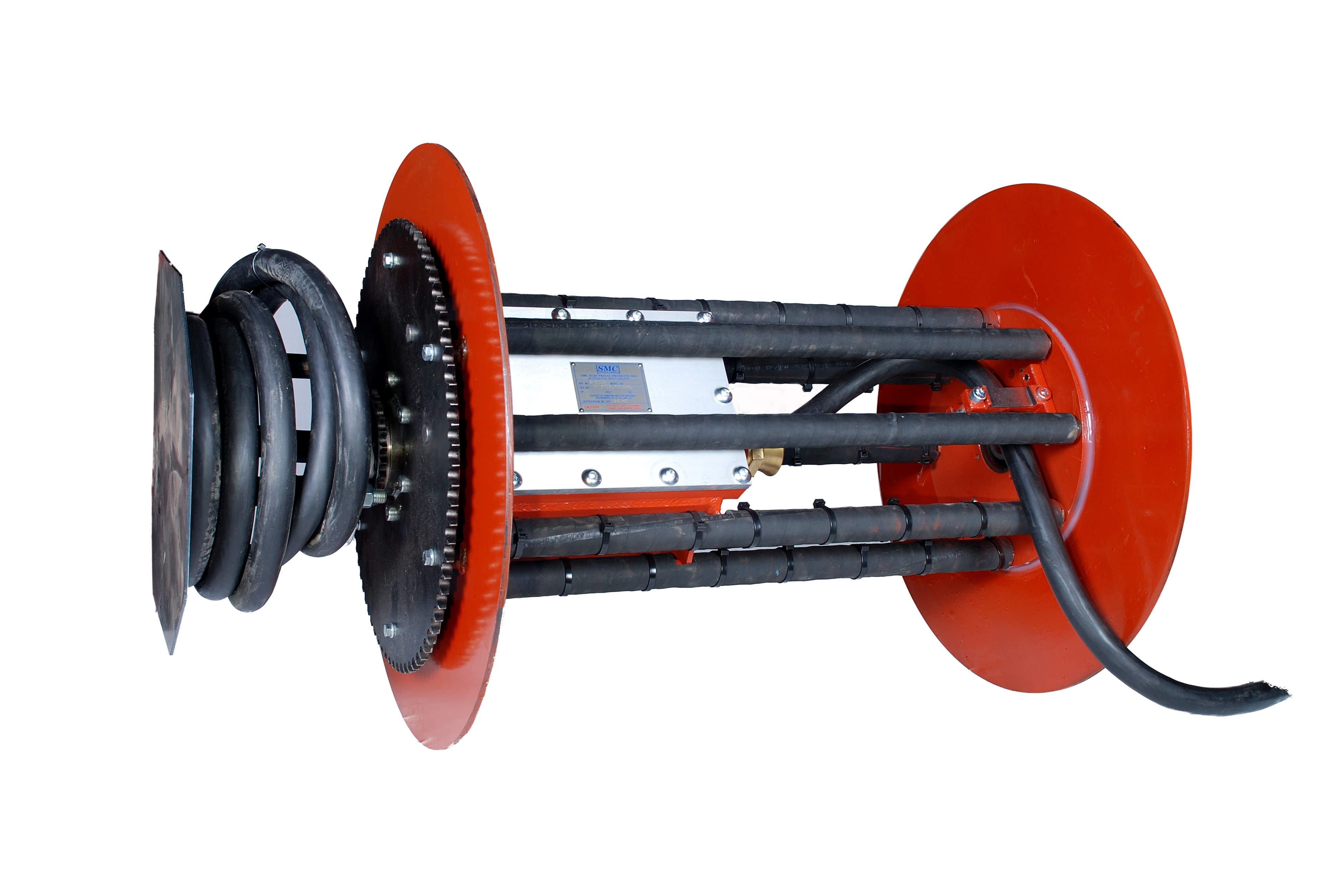

Cable Reel
Explosion Proof Equipment

Cable Reels

Becker Global America has been providing the mining industry cable reels for over 50 years with a large family of options by over 10 MSHA certifications. Options include cantilever and clevis mounted with outboard bearings to better distribute the mechanical load and a near infinite range of reel length and flange sizes.
Electrical current flowing through the conductors of a trailing cable generate heat. When more heat is generated in the conductor than can be dissipated to the surrounding environment the temperature of the conductor increases as well as the other components parts of the trailing cable and cable reel. Becker Global America’s cable reels are manufactured with a proprietary collector ring design that virtually eliminates problems with internal heat. The collector ring conductor is 3x the material of other OEM and has a unique lubricating technique that prevents carbon.

  • Available in AC and DC applications
  • DC reel is a great option when using a VFD onboard a shuttle car. Running DC to the shuttle car keeps leakage current off the trailing cable
  • 480v to 1,140 volts
  • Special 2,300V parallel collector ring enclosure is available
  • Current ratings 150 to 300 amps
  • Reel flanges are available in an assortment of sizes
  • Explosion Proof Enclosure covers can be aluminium or steel
  • Can Be Operated up to 150 RPMs
MSHA Certificate

Product certificates

This product is certified for:
MSHA Certificate
Some text.
@todo Different products ---

Cable Reels: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.
