  • Other Train Components
On this page
  • General information
  • Technical details
  • Expert contact
BWTU-50/130
Monorail Tracks

BWTU-50/130

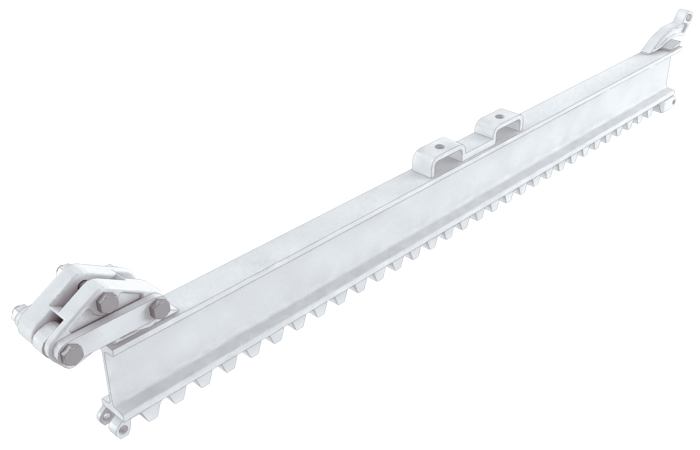

Universal toothed rail type BWTU-50/130 manufactured by Becker Warkop is a patented solution and is designed for suspended monorails equipped with friction, gear and rope drive (after installation of pulley units).
When rail joint is placed between arches of lining, while sling Chain inclination exceeds boundary limits, it is required to use suspension with the use of crossbars.

  • High load capacity
  • Possibility of length adjustment for customer needs
  • Suitable for both gear and friction haulages
  • Patented gear solution
  • Prevent sliding and guaranty extra safety

BWTU-50/130: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type

BWTU-50/130

Min. Horizontal Curve Radius

4 m

Min. Vertical Curve Radius

10 m

Rail joint load towards suspension

50 kN

Rail joint load along track

130 kN

BWTU-50/130: Full technical information

Type BWTU-50/130
Min. Horizontal Curve Radius 4 m
Min. Vertical Curve Radius 10 m
Rail joint load towards suspension 50 kN
Rail joint load along track 130 kN
Allowed track slope ±45°
Curved rails Available rail angles: 7.5°, 15°, 20°/Bending radius in horizontal plane: R = 4 m
Convex and concave rails Available rai angles: 7.5°/Bending radius in horizontal plane: R =10 m
Technical details may vary between different product versions.
