BECKAIR
Pneumatic

BECKAIR

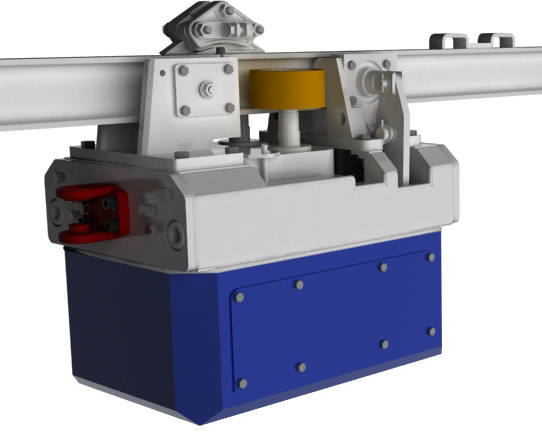

Pneumatic shunting monorail type BECKAIR is a device equipped with pneumatic drive intended for transport materials on short distances. The BECKAIR pneumatic shunting monorail can be used as an independent transport device, or can cooperate with other means of transport. The device is controlled by hand pneumatic cassette ensuring smooth driving.

  • Very compact size
  • Simple construction
  • Relatively high power
  • Easy supply from central pipeline
  • Limited maintenance need

BECKAIR: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Technical information

Type of drives

Friction drive

Nominal pulling force

20 kN (at pressure 0.6 MPa)

Max. Breaking Force

30 kN

Dimensions

870 x 830 x 1120 mm

Max. track inclination

±30°

BECKAIR: Full technical information

Type of drives Friction drive
Nominal pulling force 20 kN (at pressure 0.6 MPa)
Max. Breaking Force 30 kN
Dimensions 870 x 830 x 1120 mm
Max. track inclination ±30°
Working Medium Compressed air (required pressure 0.4 – 0.6 MPa)
Driving speed 24 m/min-1
Permissible Track's Rail Profile 1155 (I140E), I14OV, BWTU
Weight 650 kg
Technical details may vary between different product versions.
