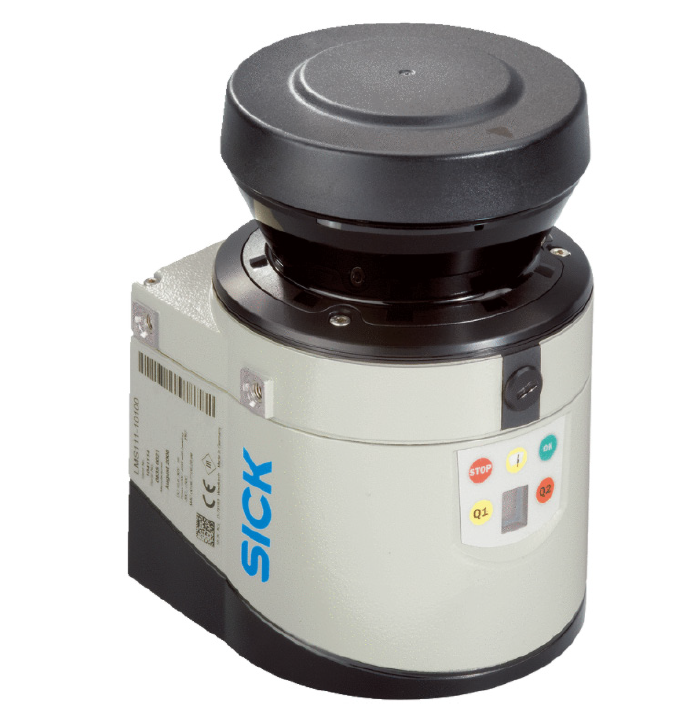

Lidar Sensor
smartdetect

2D Lidar Sensor

All mines recognize the need for a reliable, robust and low maintenance Collision Avoidance System to enhance safety and production. Becker Mining Systems smartdetect system is designed to prevent injury and damage during the operation of mining vehicles in close proximity to mining personnel and other equipment. This system provides an early warning indication that alerts the operator to the presence and number of vehicles in the vicinity.

Connected to the Controller and projected onto the LCD Touch Interface, the LiDAR Sensor measures distances by illuminating the target area with an infrared sensor. The recorded data is then extrapolated and represented into a two-dimensional visual.

Vehicle operators benefit greatly from the smartdetect LiDAR sensor as it maps physical features from the surrounding environment, adding a layer of visibility and depth to surrounding structures.

  • Measures up to 50m Range
  • Compact Design for Easy Installation
  • Ethernet Interface for Real-Time Measurement Data
  • High-Performance in Extreme Weather

2D Lidar Sensor: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

Lidar Sensor Datasheet

Download Size: 638.22 KB File Format: PDF

Technical information

Input Voltage

10.8 - 30VDC

Power Consumption

8 - 35W

Scanning Range

18 - 50m

Scanning Frequency

25 - 50Hz

Light Source

Infrared (905 nm)

2D Lidar Sensor: Full technical information

Input Voltage 10.8 - 30VDC
Power Consumption 8 - 35W
Scanning Range 18 - 50m
Scanning Frequency 25 - 50Hz
Light Source Infrared (905 nm)
Dimensions 105 x 162 x 102 mm
Weight 1.1 kg
Connectors 5-pin M12 Round Connector
Temperature Range -30 to + 70° C
Protection Class IP67
Technical details may vary between different product versions.
