UHED450WW# Headend
smartcom 450

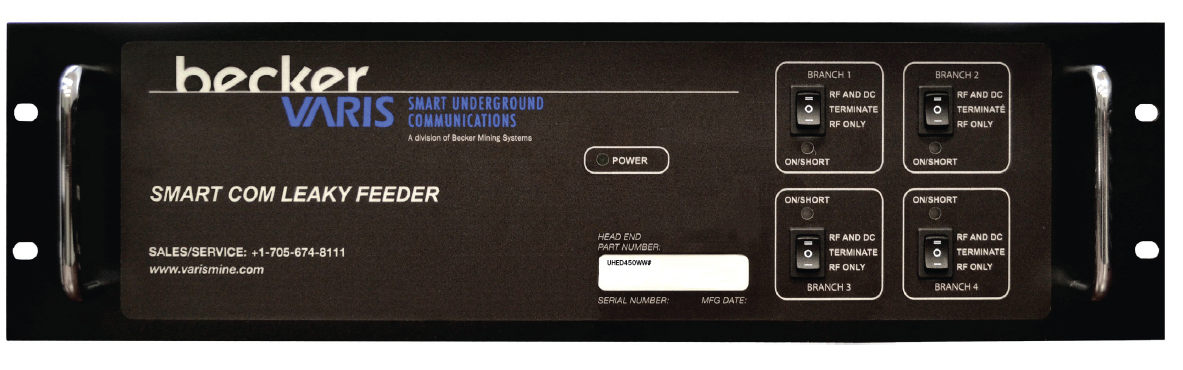

UHED450WW# Headend

Becker Mining Systems smartcom® UHED450WW# Head End is the interface between Base Station equipment (Repeaters, Head end server) and the Becker smartcom® 450 Leaky Feeder network. The Head End provides a downstream pilot and bi-directional remote diagnostics.
The UHED450WW# Head End is available with 12 VDC (standard), 24 VDC or 36 VDC output to the LF network for systems using European or North American frequency bands.

  • Bi-Directional Remote Diagnostics
  • N-Type Leaky Feeder connections
  • 12 VDC (standard), 24 VDC and 36 VDC output models available
  • Compatible with international channel plans (EU/NA)

UHED450WW Headend: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

UHED450WW# Datasheet

Download Size: 840.17 KB File Format: PDF

Technical information

Impedance

BR1 - BR4: 50 Ω; CH1 - CH16: 50 Ω

Input Voltage Range

12 - 14 Vdc

Output Voltage

12 VDC (Standard), 24VDC/36VDC available

Current Consumption

740 mA (nominal)

Current Limiting

~2A

UHED450WW Headend: Full technical information

Impedance BR1 - BR4: 50 Ω; CH1 - CH16: 50 Ω
Input Voltage Range 12 - 14 Vdc
Output Voltage 12 VDC (Standard), 24VDC/36VDC available
Current Consumption 740 mA (nominal)
Current Limiting ~2A
Enclosure 19” 3U, Steel
Dimensions 483 x 132 x 356 mm
Weight 6.5 kg
Temperature Range -20 to +60° C
Technical details may vary between different product versions.
