Rope Attachments

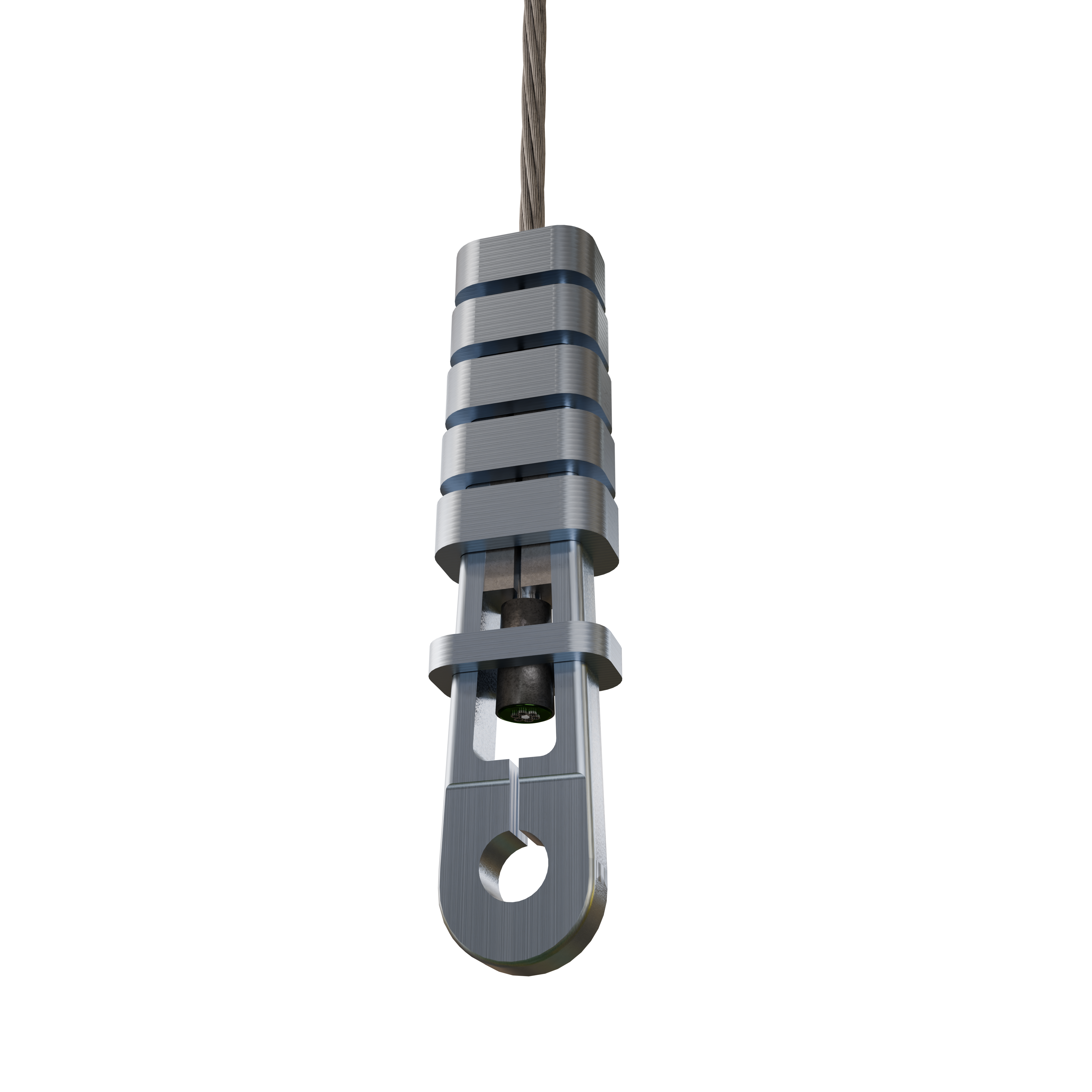

Wedge Type Cappels

These cappels act as a connecting device between a winding rope and conveyance. The wedge type cappel works on the principle of tapered wedges which produce a gripping action on the rope. This holding force is achieved a series of bands which compress the cappel limb against the wedges to provide the grip on the rope.

  • They provide a safe method of terminating a rope.
  • Available in a range of sizes to suit rope diameter and safe working load.
  • Allow for accurate adjustment of rope length.
  • Should be used in-conjunction with a cappel banding machine during installation.
  • Supplied complete with a safety block to be fitted to the rope end, which forces the wedges further into the limbs to increase grip on the rope in the event of rope slippage.
