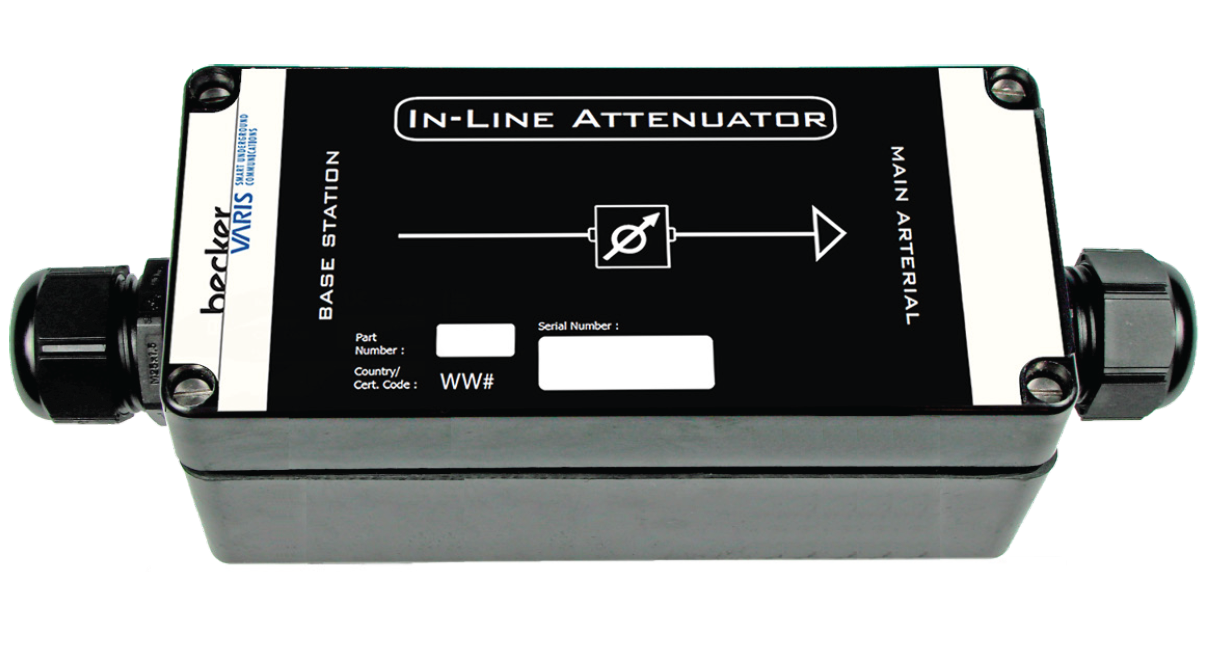

UHF-ATT UHF In-Line Attenuator
smartcom 450

UHF-ATT UHF In-Line Attenuator

Becker Mining Systems smartcom® 450 In-line Attenuator provides a means of easily and accurately adjusting the loss at any point along the Leaky Feeder network.
This can improve voice and data performance by making adjustments that reduce system noise and maintain minimum losses between system components such as line amplifier and smartcom Ethernet components.
The equipment is comprised of a single PCB housed inside a glass fiber reinforced polyester enclosure. The Inline Attenuator has two RF connections for simple installation of UHF coaxial radiating cables.

  • Low Insertion Loss (<2dB)
  • Low Power Consumption
  • 0-15.5 dB In-line Attenuation, 0.5 dB Steps
  • Compatible with UHF Leaky Feeder Systems
  • DC Blocking Jumpers

UHF-ATT UHF In-Line Attenuator: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

UHF-ATT Datasheet

Download Size: 683.8 KB File Format: PDF

Technical information

Frequency Band

435-480 MHz

Connectors

Brass Block

Insertion Loss

<2 dB

Current Consumption

< 50mA

Enclosure

Fiberglass reinforced polyester plastic

UHF-ATT UHF In-Line Attenuator: Full technical information

Frequency Band 435-480 MHz
Connectors Brass Block
Insertion Loss <2 dB
Current Consumption < 50mA
Enclosure Fiberglass reinforced polyester plastic
Dimensions 55 x 75 x 160 mm
Weight 650 g
Temperature Range -20 to +60°C
Protection Class NEMA 4x (IP66)
Technical details may vary between different product versions.
