  • Belt Rip Detection System BRS
On this page
  • General information
  • Downloads
  • Expert contact
BRS4.0 - Transmitter BR2010
BRS4.0

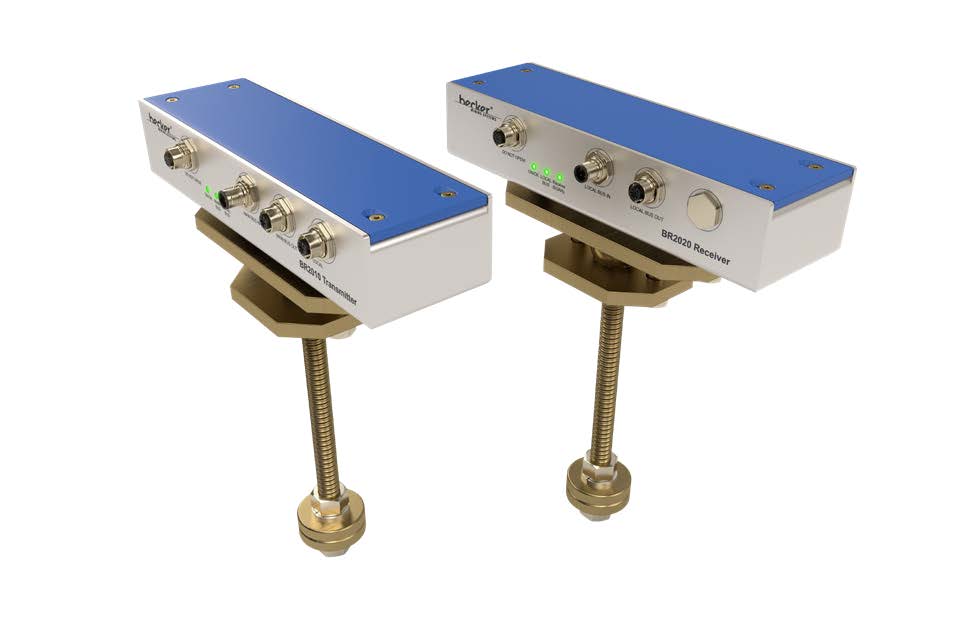

BRS4.0 - BR2010 Transmitter / BR2020 Receiver

Transmitter and receiver are the core sensors to enable the rip detection. Both, BR2010 and BR2020, are entirely developed and manufactured by Becker Mining Systems. Built for extreme environmental conditions, the sensors come with IP65 protection and are rated for temperatures between -43 °C and +50 °C. The devices are also available as ATEX and IECEx certified versions.
The transmitter is connected to the BRS4.0 control unit and communicates via BTS (Becker Telegram Standard).

  • Ambient Temperature Range -40 °C - 60 °C
  • Ingress Protection IP65
  • Supply Voltage 10 V DC - 15 V DC
  • Operating Current ≤ 400 mA
  • Carrier Frequency 56 kHz
  • Modulation Frequency Approx. 3.5 kHz
  • Height x Width x Depth 55 mm x 270 mm x 80 mm
  • Weight 3 kg
  • Bus (RS485) 9 600 Baud - 115 200 Baud

BRS4.0 - BR2010 and BR2020: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Documents & Downloads

Document

BRS4.0_Belt_Rip_Scanning_2023_EN_rev2.pdf

Download Size: 3.63 MB File Format: PDF
