Background DTS

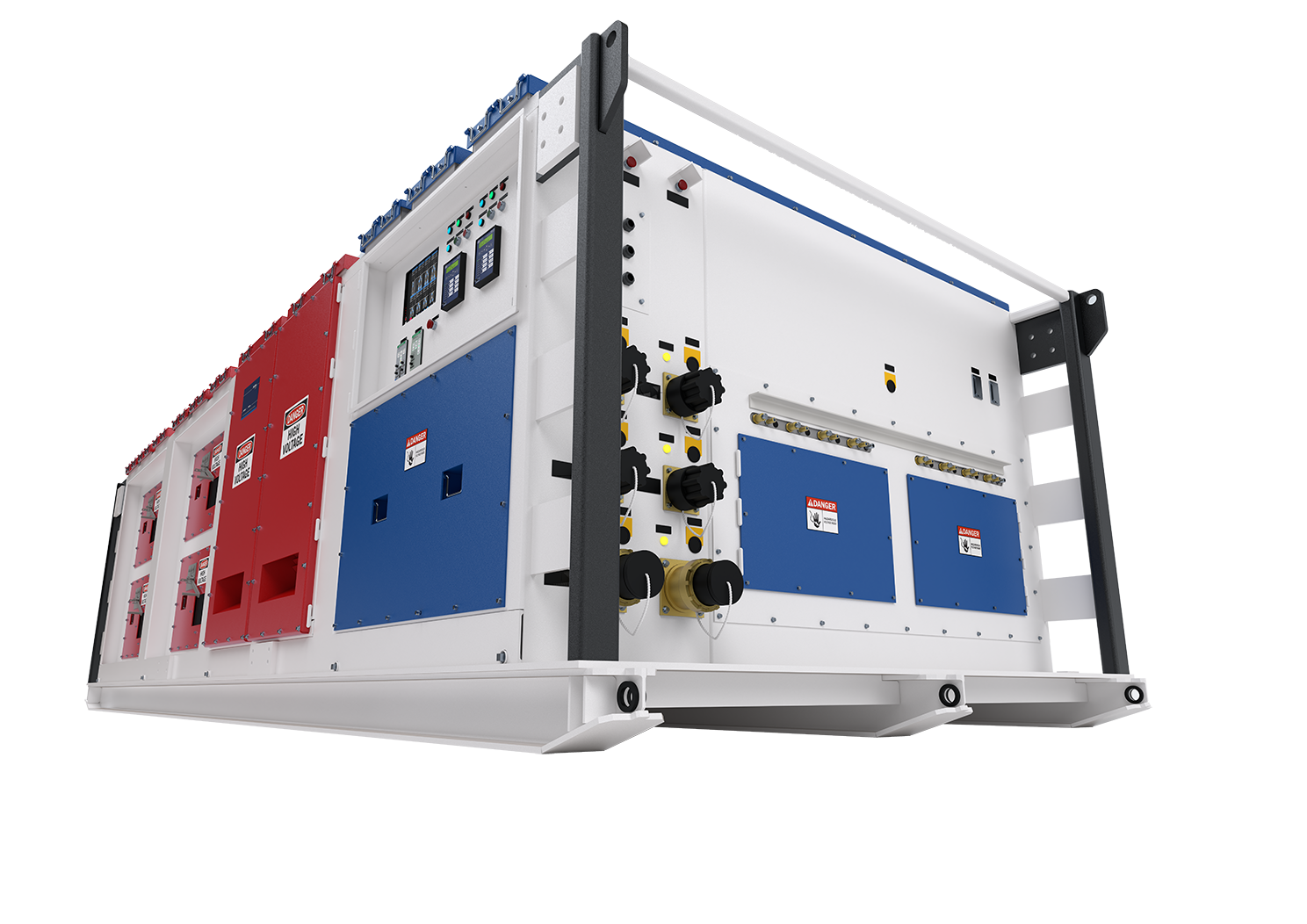

DTS - Disconnecting Transformation Sled
Product line

DTS - Disconnecting Transformation Sled

The DTS combines the ARCGUARD®, the DURATRANS™ Transformer, and the Compact Station 4000 Series into a space-saving solution designed specifically for underground applications. This modular and adaptable design optimizes power distribution, maximizes safety, and simplifies maintenance. Thanks to its wellthoughtout design, the DTS is easy to transport into mine shafts and can be serviced on-site.

  • ANSI/IEEE C37.20.7 and CSA C22.2 standards compliance ensures maximum safety
  • ARCGUARD® eliminates dangerous arcs through advanced cooling paths
  • 15% improved thermal performance over traditional transformers
  • Dual input power with TX Feedthrough
  • Modular design allows quick lateral transformer replacement underground
  • Electrically retractable and extendable Plug-In Contactors for seamless operation
  • Universal slots for various Plug-In Contactors, ensuring high adaptability
  • Remote monitoring via operation center PC, tablet, or smartphone
  • Designed for vertical and horizontal lifting (slinging) in mine shafts

DTS: Product inquiry

Do you need more information regarding this product or do you want to integrate this product into your solution? Feel free to use the form below or reach out to a local contact person.

Fields are required.

Full product list
On this page
  • General information
  • Product benefits
  • Downloads
  • Expert contact

Maximum safety and efficiency in a compact system – The Disconnecting Transformation Sled (DTS) integrates Becker’s latest safety, transformation, and power distribution technologies into a robust, modular unit.

DTS with descriptions

DTS at a Glance

Helmet Icon

Safety Standards

Integrated system combining Arc Guard, Dura Trans Transformer, and ENDIS Compact Station 4000 for maximum safety and reliability.

icon screwdriver wrench

Easy Maintenance

Easy front access for inspections and maintenance – no need to disassemble the unit.

Enegery Icon

Flexible Power Distribution

Supports dual input, TX through-feed and removable TX – designed for 600 V power distribution.

Icon Tranport Arrows

Optimized for Transport

Compact, robust housing – optimized for shaft transport and underground use.

How it Works

Disconnecting Transformation Sled (DTS): Modular Power Distribution for Underground Mining

The Disconnecting Transformation Sled (DTS) from Becker Mining Systems is a compact, modular, and highly secure power distribution solution designed specifically for the extreme conditions of underground mining. The integrated ARCGUARD® system actively redirects dangerous arcs through dedicated cooling paths, ensuring maximum system protection and safeguarding personnel. The robust DURATRANS™ Transformer guarantees reliable voltage conversion under harsh environments, while the ENDIS Compact Station 4000 Series delivers powerful and efficient energy distribution with an advanced Human Machine Interface (HMI) for intuitive operation.

The DTS is fully networked for seamless local and remote control. Operators can monitor and manage the system either directly via the HMI or remotely via an operations center PC, tablet, or smartphone — enabling real-time oversight and rapid response from virtually any location.

Thanks to its modular design, the Disconnecting Transformation Sled is easy to install, maintain, and relocate. The DURATRANS™ Transformer features a quick lateral replacement mechanism, allowing underground maintenance without full system disassembly. Optimized for dynamic mining environments, the DTS powers long-running monorail systems and can be efficiently moved as operations advance, ensuring uninterrupted power supply and operational flexibility.

HMI - Human Machine Interface

HMI Systems for Underground Mining: Real-Time Data, Motor Control & Fault Diagnostic

Motor Control & Isolation – Optimized for Underground Mining

The digital control system enables operators in underground mining environments to safely switch motor outputs, reverse motor direction, and isolate or ground individual components — ensuring reliable power management and maximum operational safety.

Compact Station HMI

Live Monitoring & Fault Management via HMI

Through the integrated HMI, users can monitor live measurement values, adjust module settings, and instantly detect and acknowledge system faults — supporting efficient remote monitoring and real-time diagnostics in demanding industrial conditions.

Compact Station HMI

Role-Based Access for Enhanced Industrial Safety

Designed for critical mining infrastructure, the HMI features role-based access control, assigning tailored permission levels to administrators, engineers, and operators — improving industrial safety and ensuring secure access in digital power distribution systems.

Compact Station HMI

Documents & Downloads

Document

DTS - Disconnecting Transformation Sled - Brochure - EN 2025.3.pdf

Download Size: 6.84 MB File Format: PDF
